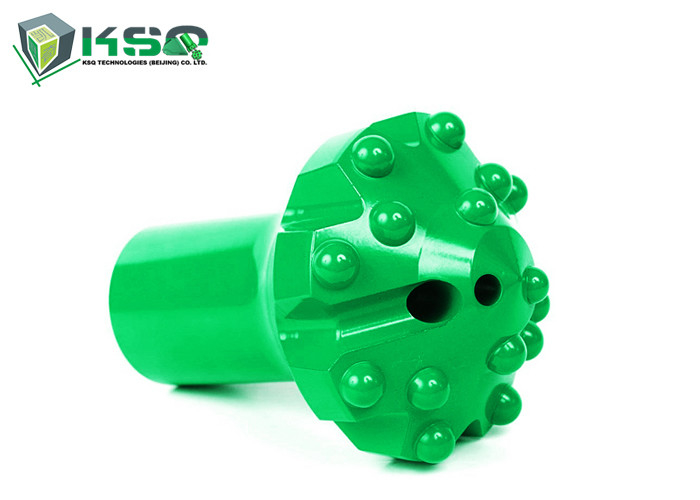

6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit

6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit

6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit
6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit
6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Reaming Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Drill Bit Key Word: Button Bit
Angle: 30°-35° Button Shape: Spherical / Ballistic
Rock Class: Soft, Medium And Hard Application: Rocking
High Light:

reamer drill bit

,

tungsten drill bits

6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit



Description

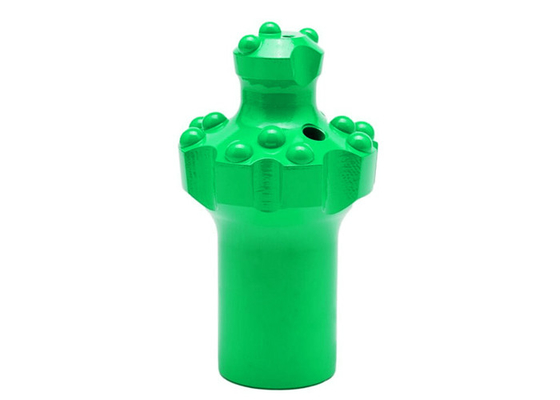

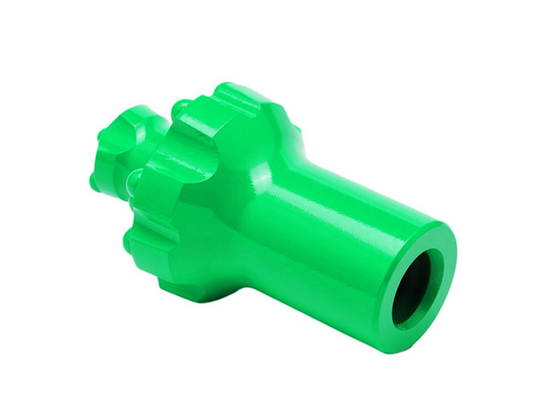

Reaming drilling tools are used when a large diameter is needed to be reamed out after a pilot holes is drilled to a depth. We manufacture pilot reaming drilling tools, domed reaming button bits and adapter reaming button bits. Pilot reaming bits consist of pilot adapters and reaming bits, both domed bits and adapter reaming bits are integral. Dome bit is usually used when the pilot bit needs to enlarge the hole diameter after drilling to the specified depth.
Thread: R25, R28, R32, R38, T38, T45, T51
Pilot adapter diameter: 26mm ~ 40 mm.
Reaming button bit diameter: 64mm ~ 152mm.



Features:
Entire CNC processing procedure ensure the quality consistency
Military grade requirements of heat-treatment guarantee durability
Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.


Specification

Part Number Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle
Front Flushing

Holes
Side Flushing

Holes
Weight

(kg)
4148300945 152 6 2x14 18x14 35° 3 1 10.6

6 Inch T51 Spherical Mining Industrial Drill Bits Reaming Button Bit 0
