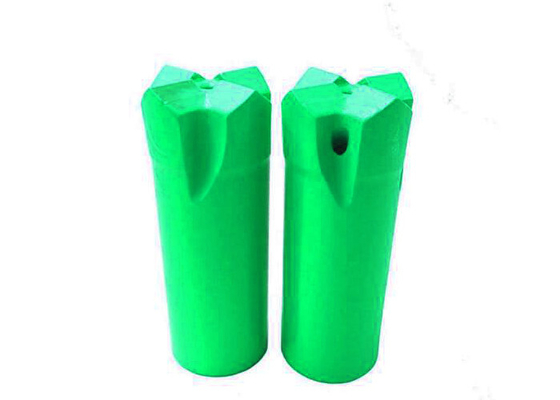

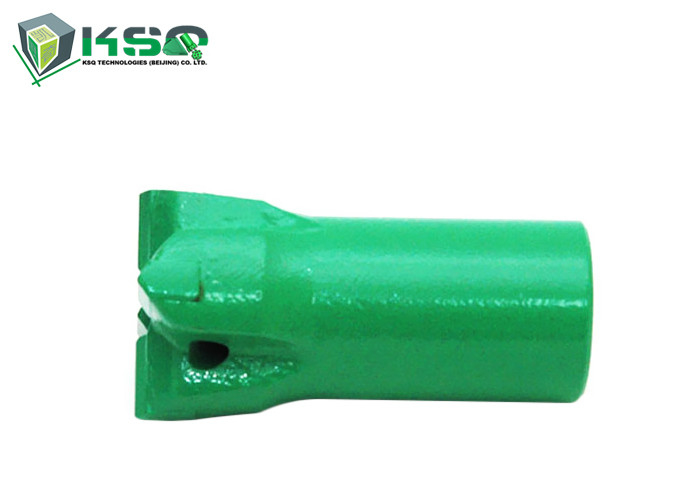

7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits

7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits

  • 7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits
  • 7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits
  • 7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits
7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: 7 Degree
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Cross Rock Drill Bit Steel Material: 42CrMo/YK05
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Flushing Hole: 1or 2
High Light:

metal drill bit

,

high speed drill bits

7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits



Application
The cross rock drill bit can be used under any rock drilling condition, it's hardly impacted by the model of drill rig and the rock performance. Generally, chisel bit are mainly used for hard rock, cross bit and button bit are mainly used for fissured rock.

Cross rock drill bits is mainly available for digging into mine laneway and blasting holes in all drilling works matched with the taper drill rod. For different rock, we choose the different alloy to extend the working life of the drill bits.

Drill bits are cutting tools used to create cylindrical holes, almost always of circular cross-section. Bits are held in a tool called drill, which rotates them and provides torque and axial force to create the hole. Our drill bit is suitable for various ground condition. It is especially efficient and fast when drilling in hard and medium-hard rock.


Characteristics
1 Long life
2. Lower consumption
3. Wide selections of drill bits
4. Delivery quickly
5. Suitable for small hole range
6. Widely used in Dimensional Stone Quarrying Industry
7. Widely used in Underground Mining Industry


Specification

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip Size

(W x H,

mm)

Front

Flushing

Holes

Side

Flushing

Holes

Weight

(kg)

4148300141

CR30-7D-22, 7°

Taper Cross Type Bit

30 1 1/6 12 x 12 x 8 1 2 0.29
4148300142

CR32-7D-22, 7°

Taper Cross Type Bit

32 1 1/4 12 x 12 x 8 1 2 0.31
4148300143

CR33-7D-22, 7°

Taper Cross Type Bit

33 1 2/7 12 x 12 x 8 1 2 0.33
4148300144

CR34-7D-22, 7°

Taper Cross Type Bit

34 1 1/3 12 x 12 x 8 1 2 0.34
4148300145

CR35-7D-22, 7°

Taper Cross Type Bit

35 1 3/8 12 x 12 x 8 1 2 0.36
4148300146

CR36-7D-22, 7°

Taper Cross Type Bit

36 1 3/7 13 x 12 x 8 1 2 0.37
4148300147

CR38-7D-23, 7°

Taper Cross Type Bit

38 1 1/2 14 x 12 x 8 1 2 0.43
4148300148

CR40-7D-23, 7°

Taper Cross Type Bit

40 1 4/7 15 x 12 x 8 1 2 0.47
4148300149

CR41-7D-23, 7°

Taper Cross Type Bit

41 1 3/5 15 x 12 x 8 1 2 0.49
4148300150

CR42-7D-23, 7°

Taper Cross Type Bit

42 1 2/3 15 x 12 x 8 1 2 0.51
4148300151

CR43-7D-23, 7°

Taper Cross Type Bit

43 1 2/3 15 x 12 x 8 1 2 0.53
4148300152

CR45-7D-25, 7°

Taper Cross Type Bit

45 1 7/9 17 x 14 x 8 1 2 0.58
4148300153

CR48-7D-25, 7°

Taper Cross Type Bit

48 1 8/9 17 x 14 x 8 1 2 0.67
4148300154

CR50-7D-25, 7°

Taper Cross Type Bit

50 2     19 x 14 x 8 1 2 0.72
4148300155

CR55-7D-25, 7°

Taper Cross Type Bit

55 2 1/6 20 x 16 x 10 1 2 0.92
4148300156

CR60-7D-25, 7°

Taper Cross Type Bit

60 2 1/3 20 x 16 x 10 1 2 1.19



7 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits 07 Degree 30mm 40mm For Quarrying Industry Alloy Steel Tapered Cross Bits 1
