| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | H25 22mm Shank Drill Rod |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Type: | Drill Pipe | Processing Type: | Heat Treatment |
|---|---|---|---|
| Application: | Ore Mining, Coal Mining, Well Drilling | Color: | Original |
| Feature: | Durable | Length: | Customer Request |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

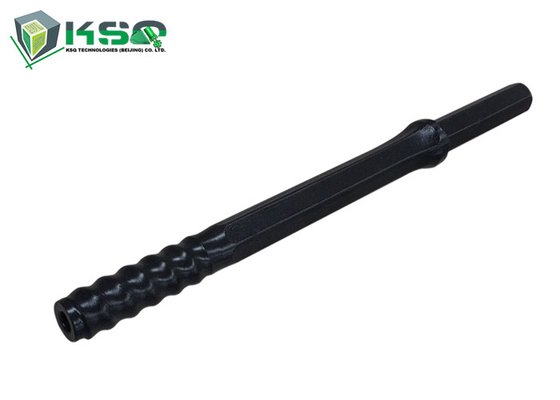

H25 22mm 82mm Hex Shank Drill Rod
Description
Drill rod using H25 thread system. Suited for drills capable of receiving Hex 22 mm x 82 mm shank.
• H25 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: H25 Hex Drill Rod
Applications
Drill rod is mainly used in the drilling blasting hole, guardrail hole, mountain reinforcment, anchoring and other engineering holes in mines, quarris, high ways, railways and so on.
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Part Number |
Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300342 |
DR22-H25-305-1, Hex 22 mm Drill Rod, Shank 82 mm |
305 | 1 | 22 | 6/7 | 1.2 |
| 4148300343 |
DR22-H25-455-1, Hex 22 mm Drill Rod, Shank 82 mm |
455 | 1 1/2 | 22 | 6/7 | 1.67 |
| 4148300344 |
DR22-H25-610-1, Hex 22 mm Drill Rod, Shank 82 mm |
610 | 2 | 22 | 6/7 | 2.15 |
| 4148300345 |
DR22-H25-762-1, Hex 22 mm Drill Rod, Shank 82 mm |
762 | 2 1/2 | 22 | 6/7 | 2.62 |
| 4148300346 |
DR22-H25-915-1, Hex 22 mm Drill Rod, Shank 82 mm |
915 | 3 | 22 | 6/7 | 3.1 |
| 4148300347 |
DR22-H25-1220-1, Hex 22 mm Drill Rod, Shank 82 mm |
1220 | 4 | 22 | 6/7 | 4.04 |
| 4148300348 |
DR22-H25-1525-1, Hex 22 mm Drill Rod, Shank 82 mm |
1525 | 5 | 22 | 6/7 | 4.99 |
| 4148300349 |
DR22-H25-1830-1, Hex 22 mm Drill Rod, Shank 82 mm |
1830 | 6 | 22 | 6/7 | 5.93 |
| 4148300350 |
DR22-H25-2440-1, Hex 22 mm Drill Rod, Shank 82 mm |
2440 | 8 | 22 | 6/7 | 7.82 |
| 4148300351 |
DR22-H25-3050-1, Hex 22 mm Drill Rod, Shank 82 mm |
3050 | 10 | 22 | 6/7 | 9.71 |
| 4148300352 |
DR22-H25-3660-1, Hex 22 mm Drill Rod, Shank 82 mm |
3660 | 12 | 22 | 6/7 | 11.6 |
| 4148300353 |
DR22-H25-4270-1, Hex 22 mm Drill Rod, Shank 82 mm |
4270 | 14 | 22 | 6/7 | 13.49 |
