| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R28 Drifter Rod |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Features: | High Quality, Reasonable Price | Color: | Black |
|---|---|---|---|
| Material: | High Speed Steel | Feature: | Accuracy, High Grade, High Strength, Rust Proof |
| Shape: | Hexagonal | Application: | Rock Drilling |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

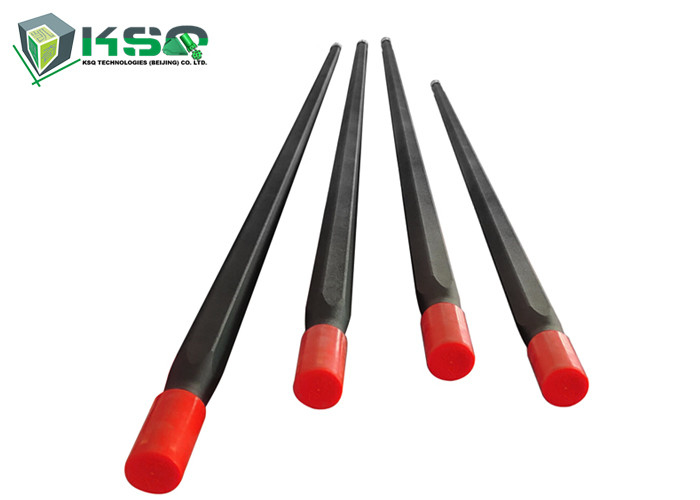

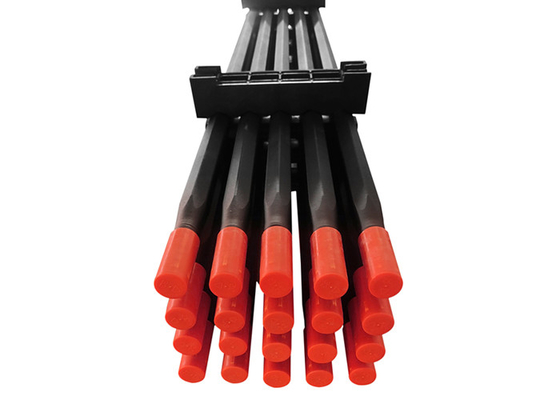

R32-Hex 32-R28 Flushing Hole 9.6mm R28 Drifter Rod
Description
Drill rod using R28 thread system. With R32 thread on one shank end. Suited for short hole drilling operations.
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R28 Drifter Rod R32-Hex 32-R28 Flushing Hole 9.6 mm With Slimmed Shank End For Female Shank
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300476 |
DRH32-R28R32-3090-1, R28 Drifter Rod, R32-Hex 32-R28, Flushing Hole 9.6 mm, With Slimmed Shank End For Female Shank |
3090 | 10 1/7 | 32 | 1 1/4 | 20 |
| 4148300477 |
DRH32-R28R32-3700-2, R28 Drifter Rod, R32-Hex 32-R28, Flushing Hole 9.6 mm, With Slimmed Shank End For Female Shank |
3700 | 12 1/7 | 32 | 1 1/4 | 24 |
| 4148300478 |
DRH32-R28R32-4000, R28 Drifter Rod, R32-Hex 32-R28, Flushing Hole 9.6 mm, With Slimmed Shank End For Female Shank |
4000 | 13 1/8 | 32 | 1 1/4 | 25.9 |
| 4148300479 |
DRH32-R28R32-4310, R28 Drifter Rod, R32-Hex 32-R28, Flushing Hole 9.6 mm, With Slimmed Shank End For Female Shank |
4310 | 14 1/7 | 32 | 1 1/4 | 27.9 |
