| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R32 Speed Rod |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||
|---|---|---|---|

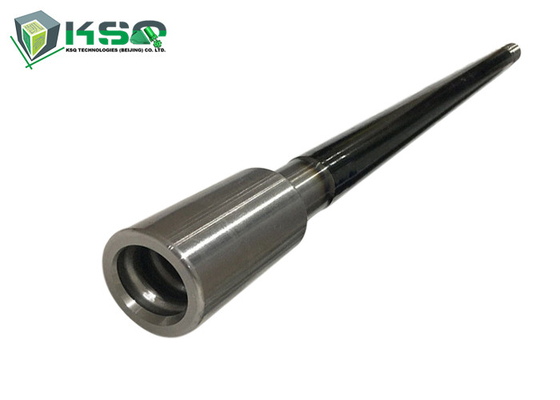

T38-Hex 35-R32 Flushing Hole 9.5mm R32 Speed Rod
Description
Drill rod using R32 thread system. With R38 or T38 thread on one shank end. Suited for short hole drilling. In good rock conditions it will produce straighter holes and at least 10% higher penetration rate compared to rod and coupling sleeve combination system.
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Speed Rod T38-Hex 35-R32 Flushing Hole 9.5 mm
M/F rod or speed rod with male thread and female thread at two ends is no need for coupling, it can connect the couplings, shanks or bits directly.
Thread: R25, R28, R32, R38, T38, T45, T51, T60, etc
Length: 600mm ~ 6095mm
Rod type: hexagonal or round
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300574 |
SRH35-R32T38-3700, R32 Speed Rod, T38-Hex 35-R32, Flushing Hole 9.5 mm |
3700 | 12 1/7 | 35 | 1 3/8 | 29.0 |
| 4148300575 |
SRH35-R32T38-4310, R32 Speed Rod, T38-Hex 35-R32, Flushing Hole 9.5 mm |
4310 | 14 1/7 | 35 | 1 3/8 | 34.1 |
| 4148300576 |
SRH35-R32T38-4920, R32 Speed Rod, T38-Hex 35-R32, Flushing Hole 9.5 mm |
4920 | 16 1/7 | 35 | 1 3/8 | 38.8 |
| 4148300577 |
SRH35-R32T38-5530, R32 Speed Rod, T38-Hex 35-R32, Flushing Hole 9.5 mm |
5530 | 18 1/7 | 35 | 1 3/8 | 43.6 |
| 4148300578 |
SRH35-R32T38-6400, R32 Speed Rod, T38-Hex 35-R32, Flushing Hole 9.5 mm |
6400 | 21 | 35 | 1 3/8 | 50.3 |
