Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16

Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16

  • Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16
  • Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16
  • Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16
Ingersoll-Rand Drill Shank Adapter URD475, URD550, VL120, EVL130, VL140, F16
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148301116-4148301119
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

drill bit shank adapter

,

threaded shank drill bit adapter

Description


In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.


• Used in top hammer drilling systems


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: Ingersoll-Rand Shank Adapters



Applications


• Underground mining
• Tunneling
• Quarry



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

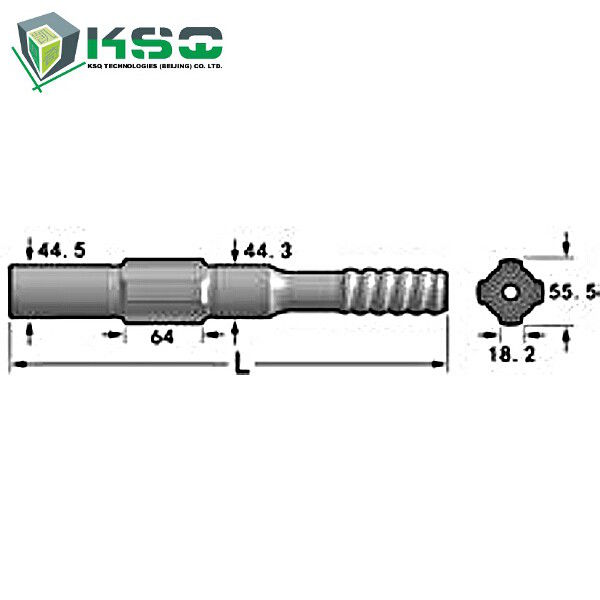

specification
<

Part Number Product Code and Brief Description Thread

Length

(mm)

Weight

(kg)

Flushing Hole

Size (mm)

4148301116

URD475, URD550, VL120, EVL130, VL140,

F16 [G1]

R32 330 3.6 14
4148301117

URD475, URD550, VL120, EVL130, VL140,

F16 [G2]

R38 350 3.8 14
4148301118

URD475, URD550, VL120, EVL130, VL140,

F16 [G3]


T38 380 4 14
4148301119

URD475, URD550, VL120, EVL130, VL140,

F16 [G4]

T38 446 4.3 14
