Place of Origin: | China |
Brand Name: | MIROC |
Model Number: | 4148301120-4148301122 |
Minimum Order Quantity: | 50 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Plate |
Delivery Time: | 25 days |
Payment Terms: | T/T or L/C |
Supply Ability: | 20000 pieces per month |
High Light: | drill bit shank adapter,threaded shank drill bit adapter |
---|

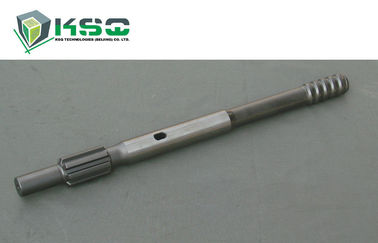

Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Ingersoll-Rand Shank Adapters
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

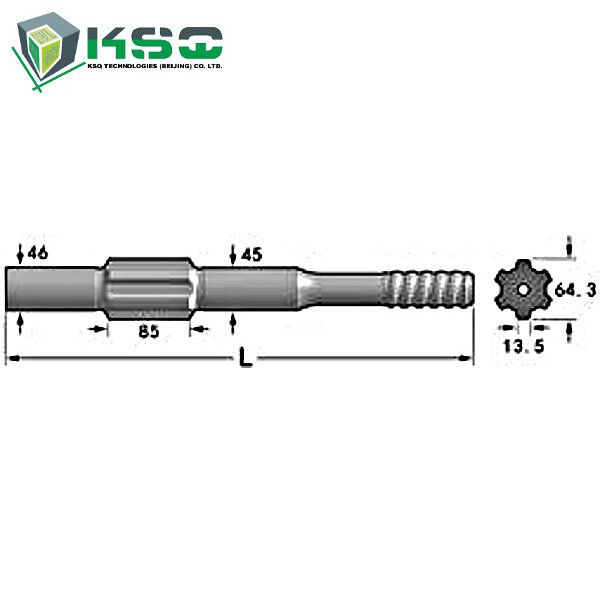

specification
<
Part Number | Product Code and Brief Description | Thread |
Length (mm) |
Weight (kg) |
Flushing Hole Size (mm) |
4148301120 | YH 65, YH 80 [G1] | T38 | 500 | 5.8 | 19 |
4148301121 | YH 65, YH 80 [G2] | T45 | 500 | 6.1 | 19 |
4148301122 | YH 65 RP, YH 70 RP, YH 75 RP, YH 80 RP | T45 | 700 | 8 | 19 |
