| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148301158-4148301163 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||
|---|---|---|---|

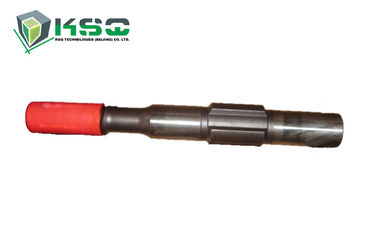

Underground Mining Shank Adapters HL 500F , HL510F
Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Shank Adapters
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

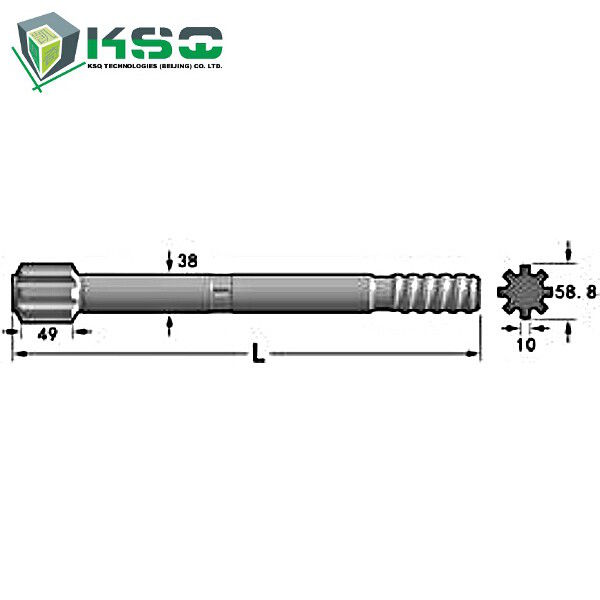

specification
| Part Number | Product Code and Brief Description | Thread |
Length |
Weight |
Flushing Hole |
| 4148301158 |
HL 500S-38, HL 510S-38, HL 510B, |
R32 | 460 | 3.9 | |
| 4148301159 |
HL 500S-38, HL 510S-38, HL 510B, |
R38 | 460 | 4.1 | |
| 4148301160 |
HL 500S-38, HL 510S-38, HL 510B, |
T38 | 460 | 4.1 | |
| 4148301161 |
HL 500S-38, HL 510S-38, HL 510B, |
R38 | 500 | 4.3 | |
| 4148301162 |
HL 500S-38, HL 510S-38, HL 510B, |
T38 | 500 | 4.3 | |
| 4148301163 | HL 500F, HL510F | R32 | 350 | 3.6 |
