| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | 4148301600-4148301611 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD$70-$120 |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 20 days |
| Payment Terms: | T/T or L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
| Product Name: | DTH Hammers | Machine Type: | Drilling Tool |
|---|---|---|---|
| Color: | Blue,Gold,Red,Golden,blue Or Customized | Advantage: | High Quality And Factory Prices |
| Processing Type: | Forging | Series: | Low/middle Air Pressure Dth Bits |
| Hole Range: | 65-220mm | Certification: | API |
| High Light: | down the hole drilling tools,down the hole hammer |
||

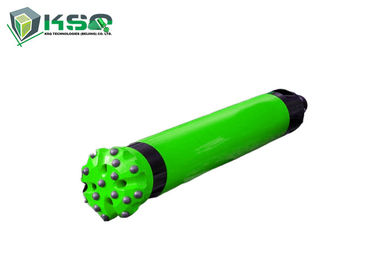

Low Pressure Alloy Steel DTH Hammers For Water Well Drilling ø80 ø156
Description
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Low Pressure DTH Hammer
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
| Part Number |
Drilling Diameter (mm) |
Hammer Length (mm) |
External Diameter (mm) |
Weight (kg) |
Working Pressure (Mpa) |
| 4148301600 | ø68 - 70 | 745 | ø61.2 | 13 | 0.5 - 0.7 |
| 4148301601 | ø72 - 74 | 803 | ø67.2 | 14 | 0.5 - 0.7 |
| 4148301602 | ø74 - 76 | 766 | ø67.2 | 15 | 0.5 - 0.7 |
| 4148301603 | ø80 - 82 | 796 | ø72 | 17 | 0.5 - 0.7 |
| 4148301604 | ø75 - 80 | 756 | ø67 | 15 | 0.5 - 0.7 |
| 4148301605 | ø80 - 82 | 756 | ø72 | 17 | 0.5 - 0.7 |
| 4148301606 | ø80 - 90 | 735 | ø74 | 17 | 0.5 - 0.7 |
| 4148301607 | ø90 - 130 | 796 | ø80.2 | 20 | 0.5 - 0.7 |
| 4148301608 | ø90 - 130 | 796 | ø80 | 20 | 0.5 - 0.7 |
| 4148301609 | ø110 - 150 | 838 | ø98 | 30 | 0.5 - 0.7 |
| 4148301610 | ø150 - 185 | 908 | ø137 | 75 | 0.5 - 0.7 |
| 4148301611 | ø170 - 250 | 1023 | ø156 | 90 | 0.5 - 0.7 |
|
Product Code and Brief Description |
Air Consumption (m3/min) |
Torque (N.m) |
Impact Frequency (n/min) |
Drill Rod Connection Thread |
Drill Bit Connection Thread |
Bit Shank |
| DTH65B | 2.5 | 51 | ≥810 |
Outside M42 x 10 x 1.5 |
ø37-4 | DTH65 |
| DTH70 | 3 | 70 | ≥810 |
Inside 48.8 x 4.2 |
ø43-6 | DTH75 |
| DTH76 | 3 | 75 | ≥810 |
Outside M48 x 10 x 2 |
ø44-4 | DTH76A |
| DTH80 | 5 | 81 | ≥800 |
Outside M48 x 10 x 2 |
ø50-6 | DTH80 |
| DTH80-II | 3 | 75 | ≥810 | Inside 45 x 4 | ø44.5-6 | DTH80-II-80 |
| DTH80X | 4.5 | 75 | ≥800 |
Inside 48.8 x 4.2 |
ø50-6 | DTH80 |
| DTH80XD | 5.5 | 85 | ≥800 |
Outside API 2 3/8" |
ø49-6 | DTH80XD-90 |
| DTH90 | 6 | 110 | ≥820 |
Outside M48 x 10 x 2 |
ø54-6 | DTH90-90/100/105/110/120/130 |
| DTH90-I | 5.5 | 120 | ≥820 |
Outside M48 x 10 x 2 |
ø54-6 | DTH90-90/100/105/110/120/130 |
| DTH110 | 11 | 180 | ≥830 |
Inside API 2 3/8" |
ø65-6 | DTH110-110/115/120/125/130/135/140/150 |
| DTH150 | 17 | 340 | ≥800 |
Inside 76 x 10 x3 |
ø90-6 | DTH150-155/165/170/175/185/200 |
| DTH170 | 19.5 | 420 | ≥790 |
Outside M100 x 28 x 10 |
ø98-6 | DTH170-175/185/195/200/210/220/230/240/250 |
