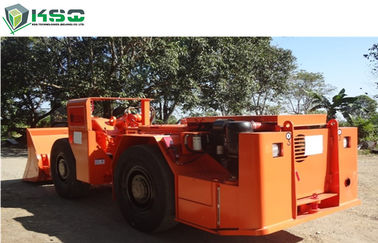

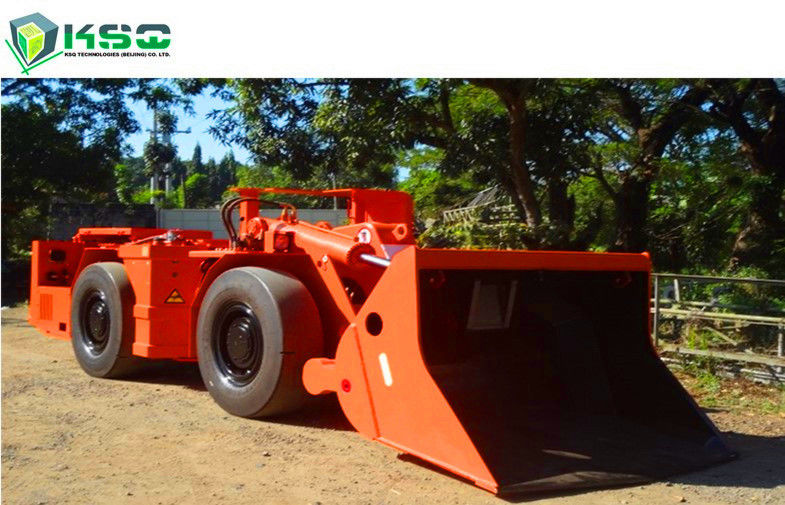

Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine

Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine

  • Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine
  • Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine
  • Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine
Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: RL-2 Load-Haul-Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 3 Units per month
Contact Now
Detailed Product Description
High Light:

lhd load haul dump

,

load haul dump truck



Central Articulated Mining Underground LHD Machines With Deuetz / CUMMINS Engine



Description



The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump Machine is

ideal for small to medium size rock excavation operations. The RL-2 maintains the simple yet very robust

design tenets of what a mining

equipment should be.



Ideal for small to medium size mining/tunneling operations requiring trackless loading and hauling

equipment for moving ore and debris

DEUTZ air-cooled engine with dual combustion feature, combined with best-in-class catalytic

exhaust and silencer system

DANA SPICER OFF-HIGHWAY transmission and torque converter

Spring Applied Hydraulic Release service brakes



Color: Based on Customer requirements



Type: RL-2 Load-Haul-Dump Machine




Applications



Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling

Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




Competitive Advantage



Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery




specification


Main Dimensions
Lengh 6875mm (Bucket in haul position)
7280mm (Bucket in load postion)
Width 1770mm
Height 1950mm
Wheelbase 2540mm
Track 1373mm
Ground Clearance ≥250mm
Departure Angle 15°
Bucket Capacity 2.0m3

2

<

Weights
Deadweight 11000kg
Payload 4000kg
Front-axle load, Unladen 5625kg
Rear-axle load, unladen 6875kg
Fully Loaded 14800kg
