Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: RL-4 Load-Haul-Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 3 Units per month
Contact Now
Detailed Product Description
High Light:

underground lhd machines

,

load haul dump truck

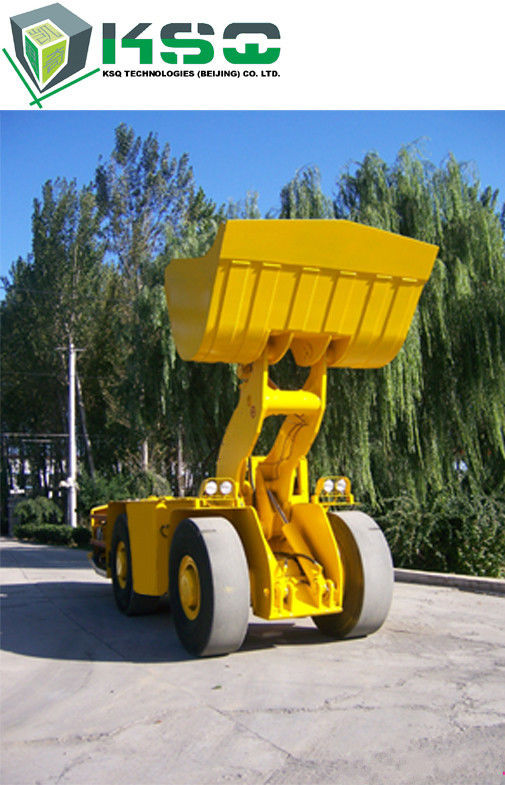

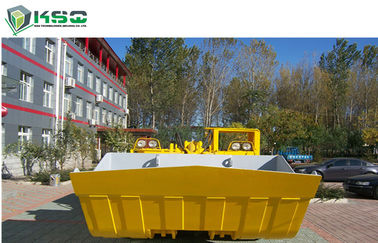

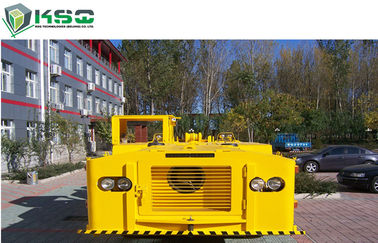

Four Wheel Drive Load Haul Dump Underground LHD For Tunneling





Description

The trusted workhorse of miners and tunneling professionals, the RL-4 Load-Haul-Dump
Machine is ideal for medium to large size rock excavation operations. The RL-4 maintains
the simple yet very robust design tenets of what a mining equipment should be.


Ideal for medium to large size mining/tunneling operations requiring trackless loading and

hauling equipment for moving ore and debris

DEUTZ or CUMMINS engine, combined with best-in-class catalytic exhaust and silencer system

DANA SPICER OFF-HIGHWAY transmission and torque converter

DANA SPICER OFF-HIGHWAY axles POSI-STOP service brakes

Color: Based on Customer requirements

Type:  RL-4 Load-Haul-Dump Machine




Applications



Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling



Competitive Advantage


Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery



specification


Main Dimensions
Lengh 9690mm
Width 2550mm
Height 2395mm
Wheelbase 3500mm
Tread 1940mm
Bucket Capacity (SAE, Heaped) 4.3m3



Bucket
Type Heavy Duty Rock Bucket
Bucket Arm System Z-Bar Linkage
Maximum Lift Height 5155mm
Maximum Dumping Height 1500mm
Dumping Height Clearance 3574mm
Dumping Angle 40°±2°
