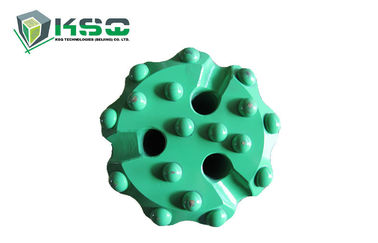

Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole

Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole

  • Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole
  • Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole
  • Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole
Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148301664-4148301671
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

carbide tipped drill bits

,

dth hammer bits



Middle - High Pressure DTH Drill Bits Stone Drilling Bits 3 Hole



Description

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.


• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

Type: Middle - High Pressure DTH Bits



Applications

• Underground mining
• Quarry benching operations
• Water well drilling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification


Part Number Flushing Holes Diameter (mm) Weight (kg)
4148301664 3 302 - 305 176
4148301665 3 311 - 314 177
4148301666 3 330 - 333 186
4148301667 3 357 - 360 196
4148301668 3 381 - 384 205
4148301669 3 444 - 447 230
4148301670 3 483 - 486 285
4148301671 3 508 - 511 311



Product Code and Brief Description

Gauge Buttons

( No. x mm)

Front Buttons

( No. x mm)

DTH Hammer
DTH3120-302 12 x 18 x 18 DTH3120
DTH3120-311 12 x 18 x 18 DTH3120
DTH3120-330 12 x 18 x 18 DTH3120
DTH3120-357 12 x 18 x 18 DTH3120
DTH3120-381 18 x 18 x 18 DTH3120
DTH3120-444 18 x 18 x 18 DTH3120
DTH3120-483 18 x 18 x 18 DTH3120
DTH3120-508 18 x 18 x 18 DTH3120
