| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | DTH Hammer |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |

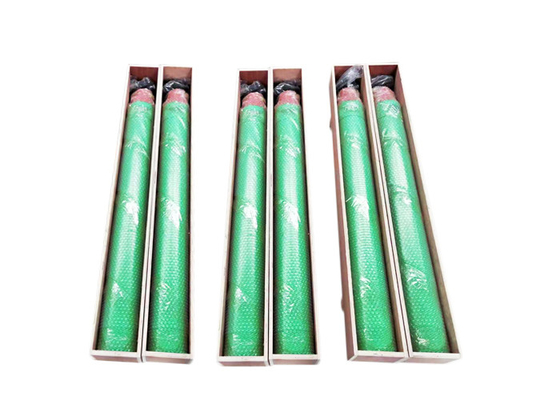

| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Type: | DTH Hammer | Material: | Alloy Steel&Tungsten Carbide |
|---|---|---|---|
| Color: | Request | Application: | Ore Mine Drilling |
| Formation: | Hard Rock Formation | Advantage: | High-efficiency |
| High Light: | down the hole drilling tools,downhole drilling tools |
||

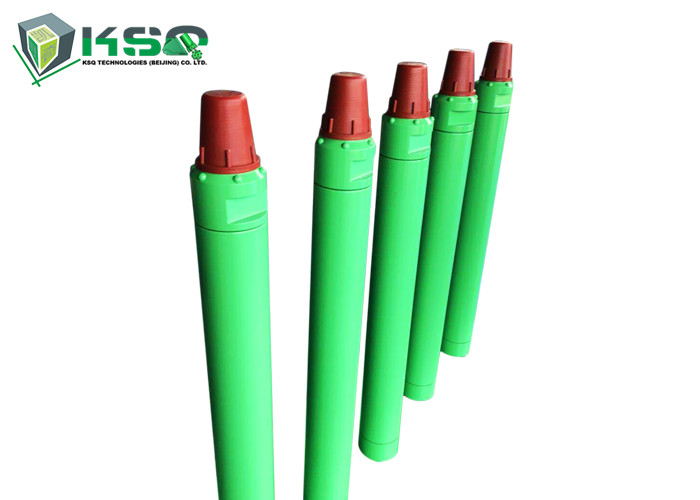

Down The Hole Drilling Tools DTH Hammer For Ore Mine Drilling
Description
For use on DTH70/80-II Hammer
Spare Parts
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: DTH70/80-II
| Type | Dth hammer |
| Material | Carbon steel |
| Use | Well Drilling,mining |
| Quality | 100% quality similarity world top class brands |
| Advantages | high quality and factory prices |
| Shank series | COP,MISSION, SD, DHD, BR, QL, BR,CIR etc. |
| series | low/middle/high air pressure dth hammer |
| Color | According to your requirements |
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification

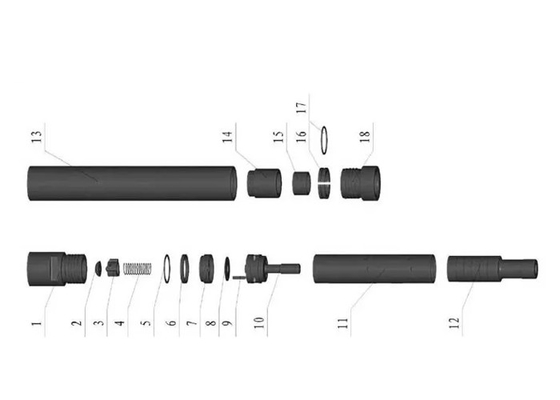

| Part Number | Product Code and Brief Description | Quick Detail | Description |
| 4148301766 | DTHXX-01, Top Sub | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301767 | DTHXX-02, Valve Seal | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301768 | DTHXX-03, Check Valve | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301769 | DTHXX-04, Check Valve with Spring | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301770 | DTHXX-05, Shim | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301771 | DTHXX-06, Make-up Ring | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301772 | DTHXX-07, Valve Cover | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301773 | DTHXX-08, Valve | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301774 | DTHXX-09, Spring-type Straight Pins | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301775 | DTHXX-10, Check Valve Guide | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301776 | DTHXX-11, Internal Cylinder | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301777 | DTHXX-12, Piston | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301778 | DTHXX-13, Piston Case | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301779 | DTHXX-14, Guided Sleeve | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301780 | DTHXX-15, Sleeve | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301781 | DTHXX-16, Bit Retainer | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301782 | DTHXX-17, Bit Retainer Ring with O-Ring | Spare Parts | For use on DTH70/80-II Hammer |
| 4148301783 | DTHXX-18, Driver Sub | Spare Parts | For use on DTH70/80-II Hammer |
