| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148301802-4148301820 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | rock drill tools,downhole drilling tools |
||
|---|---|---|---|
Tungsten Carbide DTH Drilling Tools For Valve Seal / Check Valve Guide
Description
For use on DTH76 Hammer
Spare Parts
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: DTH76
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
<

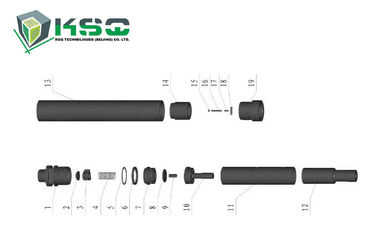

| Part Number | Product Code and Brief Description | Quick Detail | Description |
| 4148301802 | DTH76-01, Top Sub | Spare Parts | For use on DTH76XD Hammer |
| 4148301803 | DTH76-02, Valve Seal | Spare Parts | For use on DTH76XD Hammer |
| 4148301804 | DTH76-03, Check Valve | Spare Parts | For use on DTH76XD Hammer |
| 4148301805 | DTH76-04, Check Valve with Spring | Spare Parts | For use on DTH76XD Hammer |
| 4148301806 | DTH76-05, Shim | Spare Parts | For use on DTH76XD Hammer |
| 4148301807 | DTH76-06, Make-up Ring | Spare Parts | For use on DTH76XD Hammer |
| 4148301808 | DTH76-07, Valve Cover | Spare Parts | For use on DTH76XD Hammer |
| 4148301809 | DTH76-08, Valve | Spare Parts | For use on DTH76XD Hammer |
| 4148301810 | DTH76-09, Spring-type Straight Pins | Spare Parts | For use on DTH76XD Hammer |
| 4148301811 | DTH76-10, Check Valve Guide | Spare Parts | For use on DTH76XD Hammer |
| 4148301812 | DTH76-11, Internal Cylinder | Spare Parts | For use on DTH76XD Hammer |
| 4148301813 | DTH76-12, Piston | Spare Parts | For use on DTH76XD Hammer |
| 4148301814 | DTH76-13, Piston Case | Spare Parts | For use on DTH76XD Hammer |
| 4148301815 | DTH76-14, Guide Sleeeve | Spare Parts | For use on DTH76XD Hammer |
| 4148301816 | DTH76-15, Rubber Block | Spare Parts | For use on DTH76XD Hammer |
| 4148301817 | DTH76-16, Spring | Spare Parts | For use on DTH76XD Hammer |
| 4148301818 | DTH76-17, Parallel Pins | Spare Parts | For use on DTH76XD Hammer |
| 4148301819 | DTH76-18, Parallel Pins | Spare Parts | For use on DTH76XD Hammer |
| 4148301820 | DTH76-19, Driver Sub | Spare Parts | For use on DTH76XD Hammer |
