| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148301918-4148301938 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | down the hole drilling tools,downhole drilling tools |
||
|---|---|---|---|
Tungsten Carbide DTH Drilling Tools DTH150-11 Spring-type Straight Pins
Description
For use on DTH150 Hammer
Spare Parts
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: DTH150
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
<

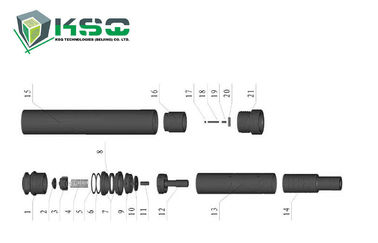

| Part Number | Product Code and Brief Description | Quick Detail | Description |
| 4148301918 | DTH150-01, Top Sub | Spare Parts | For use on DTH150 Hammer |
| 4148301919 | DTH150-02, Valve Seal | Spare Parts | For use on DTH150 Hammer |
| 4148301920 | DTH150-03, Check Valve | Spare Parts | For use on DTH150 Hammer |
| 4148301921 | DTH150-04, Check Valve with Spring | Spare Parts | For use on DTH150 Hammer |
| 4148301922 | DTH150-05, Shim | Spare Parts | For use on DTH150 Hammer |
| 4148301923 | DTH150-06, Shim | Spare Parts | For use on DTH150 Hammer |
| 4148301924 | DTH150-07, Compression Buffer | Spare Parts | For use on DTH150 Hammer |
| 4148301925 | DTH150-08, Make-up Ring | Spare Parts | For use on DTH150 Hammer |
| 4148301926 | DTH150-09, Valve Cover | Spare Parts | For use on DTH150 Hammer |
| 4148301927 | DTH150-10, Valve | Spare Parts | For use on DTH150 Hammer |
| 4148301928 | DTH150-11, Spring-type Straight Pins | Spare Parts | For use on DTH150 Hammer |
| 4148301929 | DTH150-12, Check Valve Guide | Spare Parts | For use on DTH150 Hammer |
| 4148301930 | DTH150-13, Internal Cylinder | Spare Parts | For use on DTH150 Hammer |
| 4148301931 | DTH150-14, Piston | Spare Parts | For use on DTH150 Hammer |
| 4148301932 | DTH150-15, Piston Case | Spare Parts | For use on DTH150 Hammer |
| 4148301933 | DTH150-16, Guide Sleeve | Spare Parts | For use on DTH150 Hammer |
| 4148301934 | DTH150-17, Rubber Block | Spare Parts | For use on DTH150 Hammer |
| 4148301935 | DTH150-18, Spring | Spare Parts | For use on DTH150 Hammer |
| 4148301936 | DTH150-19, Parallel Pins | Spare Parts | For use on DTH150 Hammer |
| 4148301937 | DTH150-20, Parallel Pins | Spare Parts | For use on DTH150 Hammer |
| 4148301938 | DTH150-21, Driver Sub | Spare Parts | For use on DTH150 Hammer |
