CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling

CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling

  • CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling
  • CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling
  • CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling
CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: DTH Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: DTH Hammer Material: Alloy Steel
Advantage: Durable Color: Customized Color
Quality: 100% Quality Similarity World Top Class Brands Shank Series: COP, SD, DHD, BR, QL, CIR,BR,MISSION Etc.
High Light:

down the hole drilling tools

,

downhole drilling tools

CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling



Description

For use on DTH170 Hammer

Spare Parts

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: DTH170



Type Dth hammer
Material Carbon steel
Use Well Drilling,mining
Quality 100% quality similarity world top class brands
Advantages high quality and factory prices
Shank series COP,MISSION, SD, DHD, BR, QL, BR,CIR etc.
series low/middle/high air pressure dth hammer
Color According to your requirements


Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


Specification

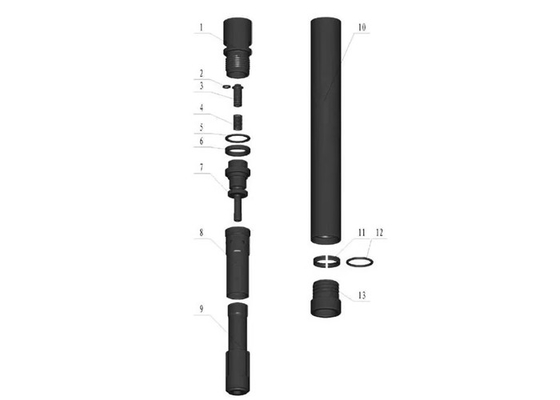

Part Number

Product Code and Brief Description

Quick Detail

Description

4148301939

DTH170-01, Top Sub

Spare Parts

For use on DTH170 Hammer

4148301940

DTH170-02, Valve Seal

Spare Parts

For use on DTH170 Hammer

4148301941

DTH170-03, Check Valve

Spare Parts

For use on DTH170 Hammer

4148301942

DTH170-04, Check Valve with Spring

Spare Parts

For use on DTH170 Hammer

4148301943

DTH170-05, Shim

Spare Parts

For use on DTH170 Hammer

4148301944

DTH170-06, Compression Buffer

Spare Parts

For use on DTH170 Hammer

4148301945

DTH170-07, Make-up Ring

Spare Parts

For use on DTH170 Hammer

4148301946

DTH170-08, Valve Cover

Spare Parts

For use on DTH170 Hammer

4148301947

DTH170-09, Valve

Spare Parts

For use on DTH170 Hammer

4148301948

DTH170-10, Spring-type Straight Pins

Spare Parts

For use on DTH170 Hammer

4148301949

DTH170-11, Check Valve Guide

Spare Parts

For use on DTH170 Hammer

4148301950

DTH170-12, Internal Cylinder

Spare Parts

For use on DTH170 Hammer

4148301951

DTH170-13, Piston

Spare Parts

For use on DTH170 Hammer

4148301952

DTH170-14, Piston Case

Spare Parts

For use on DTH170 Hammer

4148301953

DTH170-15, Guide Sleeve

Spare Parts

For use on DTH170 Hammer

4148301954

DTH170-16, Rubber Block

Spare Parts

For use on DTH170 Hammer

4148301955

DTH170-17, Spring

Spare Parts

For use on DTH170 Hammer

4148301956

DTH170-18, Parallel Pins

Spare Parts

For use on DTH170 Hammer

4148301957

DTH170-19, Parallel Pins

Spare Parts

For use on DTH170 Hammer

4148301958

DTH170-20, Driver Sub

Spare Parts

For use on DTH170 Hammer



CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling 0CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling 1CNC Milling DTH Drilling Tools Air Pressure DTH Hammer For Mining Well Drilling 2
