| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148300464-4148300469 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | rock drill tools,mining drilling tools |
||
|---|---|---|---|
Description
Drill rod using R25 thread system. With R32 thread on one shank end. Suited for short hole drilling operations.
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

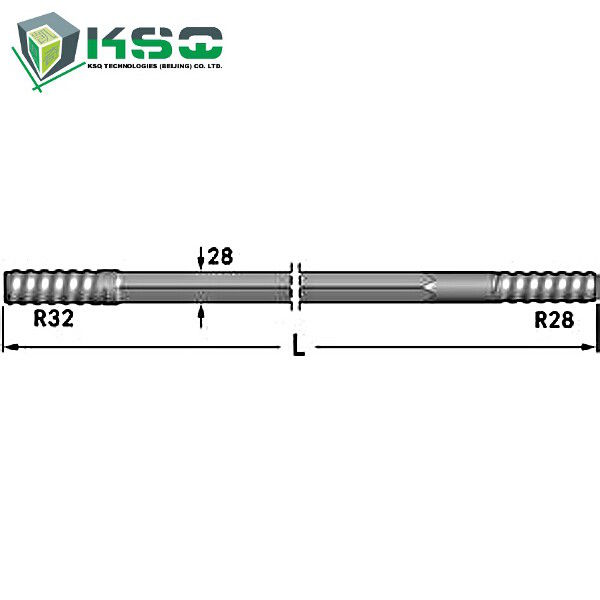

Type: R28 Drifter Rod R32-Hex 28-R28 Flushing Hole 8.8 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
<
| Part Number |
Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300464 |
DRH28-R28R32-2400, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
2400 | 7 7/8 | 28 | 1 1/9 | 12.2 |
| 4148300465 |
DRH28-R28R32-2750, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
2750 | 9 | 28 | 1 1/9 | 14.4 |
| 4148300466 |
DRH28-1R28R32-3700, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
3700 | 12 1/7 | 28 | 1 1/9 | 18.9 |
| 4148300467 |
DRH28-R28R32-4000, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4000 | 13 1/8 | 28 | 1 1/9 | 20.4 |
| 4148300468 |
DRH28-R28R32-4310, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4310 | 14 1/7 | 28 | 1 1/9 | 22.0 |
| 4148300469 |
DRH28-R28R32-4920, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4920 | 16 1/7 | 28 | 1 1/9 | 25.3 |
