| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | DTH Hammer |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Type: | DTH Hammer | Material: | High Carbon Steel, High Carbon Steel |
|---|---|---|---|
| Use: | Ore Mining, Coal Mining | Product Name: | DTH Hammer Parts For Hard Rock Drill Tools |
| Color: | Black Or Choose By Customer | Process: | Casting |
| High Light: | stone drilling tools,rock drill tools |
||

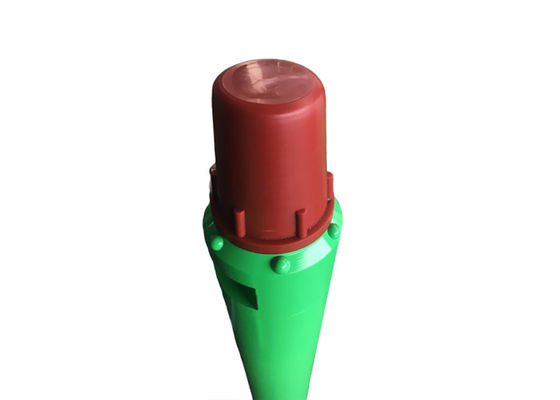

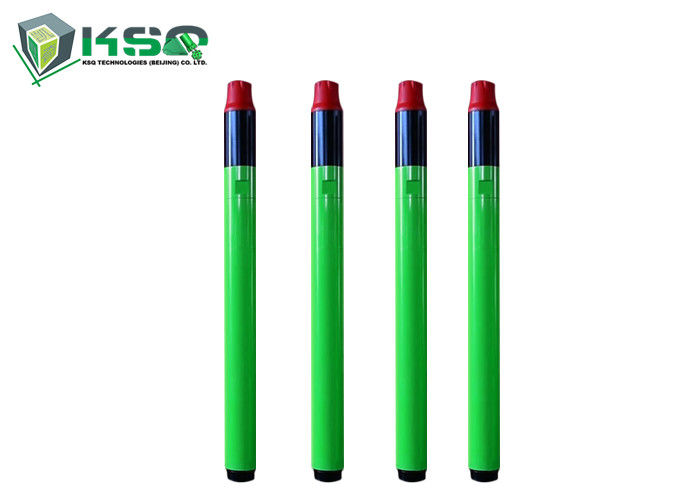

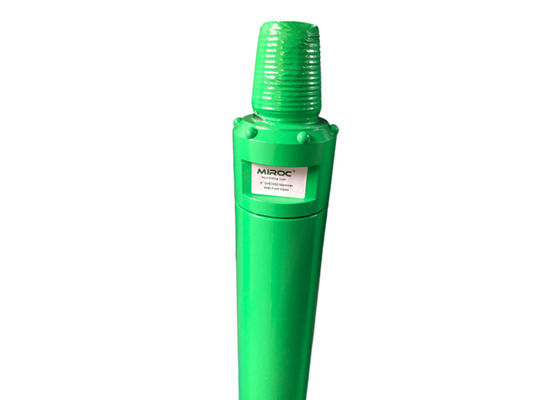

Through Reverse Circulation DTH Hammer With Heat Treatment Process
Description
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Through Reverse Circulation DTH Hammer
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification
| Part Number |
Drilling Diameter (mm) |
Hammer Length (mm) |
External Diameter (mm) |
Weight (kg) |
Working Pressure (Mpa) |
| 4148301629 | ø90 - 105 | 1143 | ø85 | ø33 | 0.7 - 2.1 |
| 4148301630 | ø110 - 130 | 1281 | ø105 | ø36 | 0.7 - 2.1 |
| 4148301631 | ø135 - 155 | 1292 | ø124 | ø36 | 0.8 - 2.1 |
| 4148301632 | ø160 - 200 | 1345 | ø154 | ø61 | 0.8 - 2.1 |
| 4148301633 | ø200 - 254 | 1578 | ø190 | ø61 | 0.8 - 2.1 |
| 4148301634 | ø254 - 311 | 1440 | ø250 | ø75 | 0.8 - 2.4 |
| 4148301635 | ø311 - 360 | 1430 | ø270 | ø85 | 0.8 - 2.4 |
|
Product Code and Brief Description |
Air Consumption (m3/min) |
Torque (N.m) |
Impact Frequency (n/min) |
Drill Rod Connection Thread |
Drill Bit Connection Thread |
Bit Shank |
| DTHF335 | 4.2 - 11.7 | 475 | ≥800 |
Inside API 2 3/8" |
- |
DTHF335- 95/100 |
| DTHF345 | 5.7 - 14.2 | 600 | ≥800 |
Inside API 2 7/8" |
- |
DTHF345- 115/127 |
| DTHF355 | 6.5 - 19.3 | 791 | 810 - 1200 |
Inside T 91-3 |
- |
DTHF355- 140/152 |
| DTHF365 | 9 - 18 | 950 | 600 - 1100 |
Inside API 4 1/2" |
- |
DTHF365- 165/178/195 |
| DTHF385 | 12 - 30.8 | 1040 | 660 - 1208 |
Inside API 4 1/2" |
- |
DTHF385- 203/216 /230/254 |
| DTHF3105 | 15 - 34 | 1260 | 600 - 1230 |
Inside API 4 1/2" |
- |
DTHF3105- 254/273/305 |
| DTHF3125 | 20 - 37.8 | 1250 | 600 - 1150 |
Inside API 4 1/2" |
- |
DTHF3125- 311/355/381 |
