| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | RL-3 Load-Haul-Dump Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Delivery Time: | 1-3 Months |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 3 Units per month |
| High Light: | lhd load haul dump,load haul dump truck |
||
|---|---|---|---|

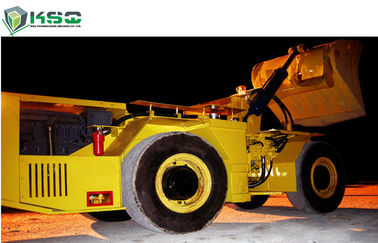

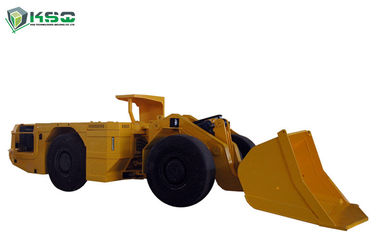

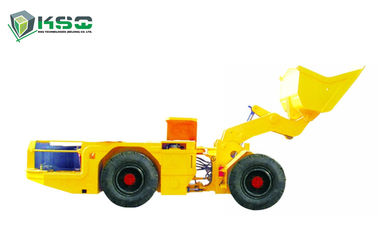

Mini Articulated Load Haul Dump Truck Underground Mining Equipment
Description
The trusted workhorse of miners and tunneling professionals, the RL-3 Load-Haul-Dump Machine
is ideal for medium size rock excavation operations. The RL-3 maintains the simple yet very
robust design tenets of what a mining equipment should be.
.
Ideal for medium size mining/tunneling operations requiring trackless loading and hauling
equipment for moving ore and debris
DEUTZ air-cooled engine, combined with best-in-class catalytic exhaust and silencer system
DANA SPICER OFF-HIGHWAY transmission and torque converter
DANA SPICER OFF-HIGHWAY axles
POSI-STOP service brakes
Color: Based on Customer requirements
Type: RL-3 Load-Haul-Dump Machine
Applications
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
Competitive Advantage
Major components from industry respected suppliers
Simple yet very robust design
Very competitive pricing compared to its counterparts coming from well-known brands
Competitive delivery
specification
| Main Dimensions | |
| Lengh | 8868mm ±100mm(Bucket in haul position) |
| 9307mm ±100mm(Bucket in load postion) | |
| Width | 2112mm ±50mm |
| Height | 2275mm ±50mm |
| Wheelbase | 3150mm ±15mm |
| Track | 1472mm ±15mm |
| Ground Clearance | ≥280mm |
| Departure Angle | 15°±1° |
| Bucket Capacity | 3.0m3 |
| Weights | |
| Deadweight | 17000kg |
| Payload | 6000kg |
| Front-axle load, Unladen | 6169kg |
| Rear-axle load, unladen | 8349kg |
| Fully Loaded | 23400kg |
