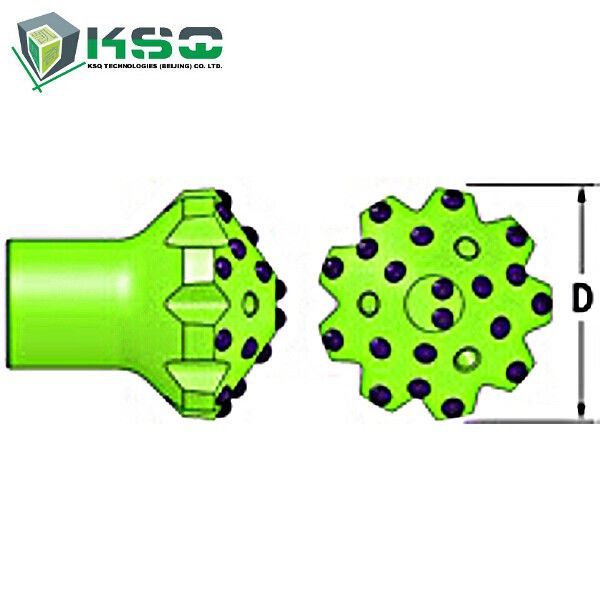

Dome Reaming Drill Bit

Dome Reaming Drill Bit

  • Dome Reaming Drill Bit
  • Dome Reaming Drill Bit
  • Dome Reaming Drill Bit
  • Dome Reaming Drill Bit
Dome Reaming Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300946
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

reamer drill bit

,

cnc drill bits

Description


This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


• Widely used in drifting and tunneling
• T51 thread system


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: T51 Dome Bit For Reaming Ballistic Buttons



Applications


• Underground mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification

1

Part Number Bit Diameter (mm) Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300946 152 6     2x14 14x14

2

Product Code and Brief Description Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

RE16152-T51-B, T51 Dome Bit For Reaming, Ballistic Buttons 35° 3 1 10.6
