Self Drilling Threaded Drill Rod

Self Drilling Threaded Drill Rod

Self Drilling Threaded Drill Rod
Self Drilling Threaded Drill Rod
Self Drilling Threaded Drill Rod
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300947-4148300953
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

drill extension rod

,

rock drill rod

Description

Drill rod using T51 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling.

• T51 thread system
• Widely used in drifting, tunneling, benching, and long hole drilling


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

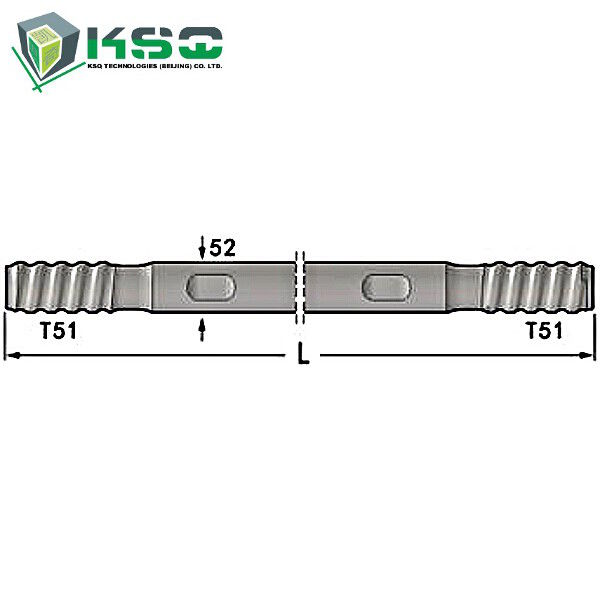

Type:T51 Extension Rod T51-Round 52-T51 Flushing Hole 21.5 mm Wrench Flat 45 mm



Applications


• Underground Mining
• Tunneling



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



specification

<

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Diameter

(mm)

Diameter

(inch)

Weight

(kg)

4148300947

ER52-T51-3050,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

3050 10     52 2     45.3
4148300948

ER52-T51-3660,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

3660 12     52 2     54.1
4148300949

ER52-T51-4270,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

4270 14     52 2     63.0
4148300950

ER52-T51-4880,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

4880 16     52 2     71.8
4148300951

ER52-T51-5530,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm


5530 18 1/7 52 2     81.2
4148300952

ER52-T51-6095,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

6095 20     52 2     89.4
4148300953

MF52-T51-1525,

T51 Extension Rod,

T51-Round 52-T51,

Flushing Hole 21.5 mm,

Wrench Flat 45 mm

1525 5     52 2     26.2
