| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148300241-4148300254 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | rock drill rod,hardened drill rod |
||
|---|---|---|---|
Description
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

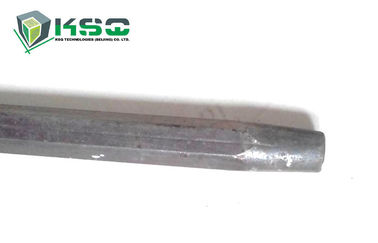

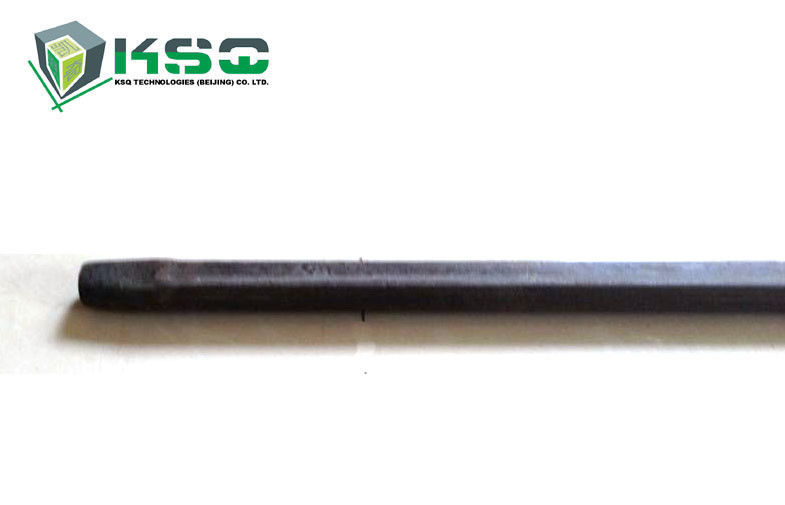

Type: 11° Taper Hex 22 Tapered Rod Shank 22 mm x 108 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
<
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) |
Weight (kg) |
| 4148300241 |
H22-11D-610, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
610 | 2 | 2.2 |
| 4148300242 |
H22-11D-1220, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1220 | 4 | 4.1 |
| 4148300243 |
H22-11D-1830, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1830 | 6 | 5.9 |
| 4148300244 |
H22-11D-2000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2000 | 6 5/9 | 6.4 |
| 4148300245 |
H22-11D-2435, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2435 | 8 | 7.8 |
| 4148300246 |
H22-11D-2600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2600 | 8 1/2 | 8.3 |
| 4148300247 |
H22-11D-3200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
3200 | 10 1/2 | 10.1 |
| 4148300248 |
H22-11D-3655, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
3655 | 12 | 11.5 |
| 4148300249 |
H22-11D-4000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
4000 | 13 1/8 | 12.6 |
| 4148300250 |
H22-11D-4800, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
4800 | 15 3/4 | 14.9 |
| 4148300251 |
H22-11D-5600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
5600 | 18 3/8 | 17.4 |
| 4148300252 |
H22-11D-6400, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
6400 | 21 | 19.8 |
| 4148300253 |
H22-11D-7200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
7200 | 23 5/8 | 22.2 |
| 4148300254 |
H22-11D-8000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
8000 | 26 1/4 | 24.6 |
