Product Details:
Payment & Shipping Terms:
|
| Product Name: | DTH Hammer | Application: | Mining,water Well ,quarry, Geothermal,construction Etc |
|---|---|---|---|
| Certification: | ISO9001 | Material: | Carbon Steel |
| Marketing Type: | New Product 2020 | Video Outgoing-inspection: | Provided |
| High Light: | down the hole drilling tools,down the hole hammer |
||

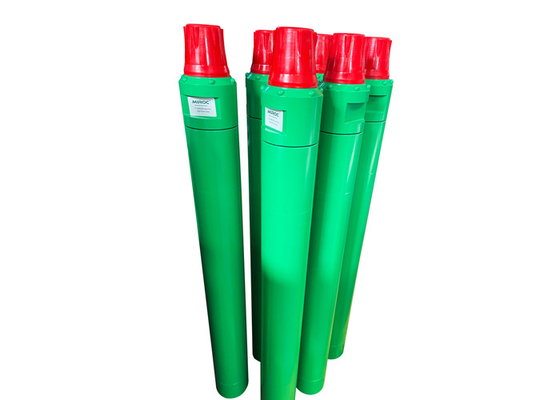

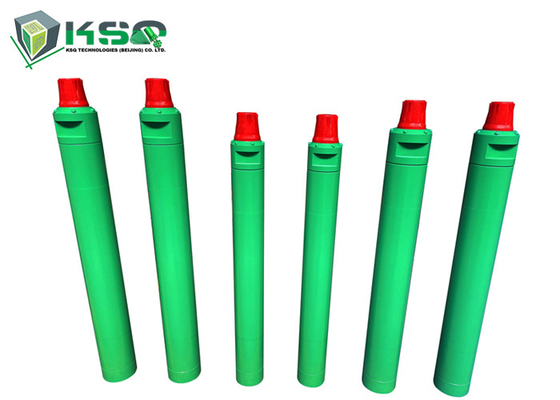

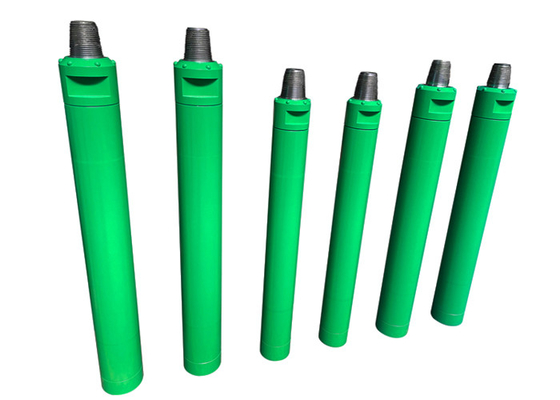

Air Pressure Mining Well Drilling Tools Down The Hole DTH Hammers
Description
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
Type: Efficient High Pressure DTH Hammer
Product Description
1) Specific heat treatment standards
2) Premium hardened steel alloy
3) High-grade cemented tungsten carbide buttons.
|
Product name |
DTH Hammer |
|
Material |
Alloy Steel&Tungsten Carbide |
|
Use |
Underground Mining,Water well,Mining,Quarry etc. |
|
Color |
Green&Others |
|
Heat treatment |
Anneal |
|
Shank series |
|
|
Application |
heavy construction,Ore Drilling, mining, oil and gas, quarries |
|
|
|
|
Size |
2/3/4/5/6/7/8/9/10/12/14 inches |
|
Advantage |
High Performance and factory price |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
• Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification
|
Part Number |
Drilling Diameter (mm) |
Hammer Length (mm) |
External Diameter (mm) |
Weight (kg) |
Working Pressure (Mpa) |
|
4148301625 |
ø115 - 130 |
998 |
ø98 |
40 |
0.8 - 2.1 |
|
4148301626 |
ø130 - 152 |
1087 |
ø118 |
60 |
0.8 - 2.1 |
|
4148301627 |
ø165 - 216 |
1076 |
ø146 |
92 |
0.8 - 2.1 |
|
4148301628 |
ø203 - 254 |
1450 |
ø181 |
260 |
0.8 - 2.1 |
|
Product Code and Brief Description |
Air Consumption (m3/min) |
Torque (N.m) |
Impact Frequency (n/min) |
Drill Rod Connection Thread |
Drill Bit Connection Thread |
Bit Shank |
|
DTH440 |
3 - 12 |
402 |
850 - 1320 |
Outside API 2 3/8" |
ø67-12 |
DTH440- 115/120/130 |
|
DTH450 |
3 - 14 |
840 |
850 - 1600 |
Outside API 2 3/8" |
ø83-12 |
DTH450- 130/140/152 |
|
DTH460 |
6.8 - 20 |
980 |
860 - 1610 |
Outside API 3 1/2" |
ø104.4-12 |
DTH460- 165/178/ 194/203/216 |
|
DTH480 |
9.6 - 24.8 |
1870 |
1100 - 1350 |
Outside API 4 1/2" |
ø128-12 |
DTH480- 203/216/230 /254/310/350 |
