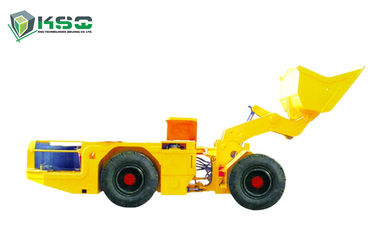

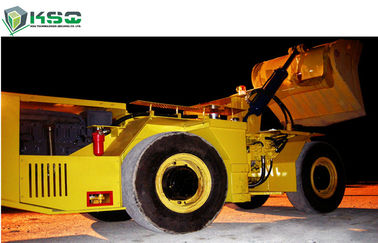

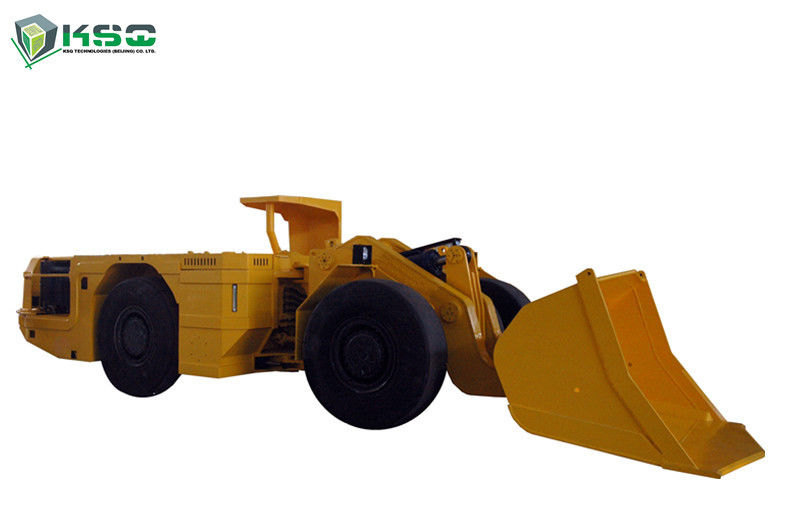

LHD Load Haul Dump Machine

LHD Load Haul Dump Machine

LHD Load Haul Dump Machine
LHD Load Haul Dump Machine
LHD Load Haul Dump Machine
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: RL-3 Load-Haul-Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 3 Units per month
Contact Now
Detailed Product Description
High Light:

lhd load haul dump


load haul dump truck



The trusted workhorse of miners and tunneling professionals, the RL-3 Load-Haul-Dump Machine

is ideal for medium size rock excavation operations. The RL-3 maintains the simple yet very

robust design tenets of what a mining equipment should be.


Ideal for medium size mining/tunneling operations requiring trackless loading and hauling
equipment for moving ore and debris

DEUTZ air-cooled engine, combined with best-in-class catalytic exhaust and silencer system

DANA SPICER OFF-HIGHWAY transmission and torque converter


POSI-STOP service brakes

Color: Based on Customer requirements

Type: RL-3 Load-Haul-Dump Machine




Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling

Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)


Competitive Advantage


Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery




Main Dimensions
Lengh 8868mm ±100mm(Bucket in haul position)
9307mm ±100mm(Bucket in load postion)
Width 2112mm ±50mm
Height 2275mm ±50mm
Wheelbase 3150mm ±15mm
Track 1472mm ±15mm
Ground Clearance ≥280mm
Departure Angle 15°±1°
Bucket Capacity 3.0m3



Deadweight 17000kg
Payload 6000kg
Front-axle load, Unladen 6169kg
Rear-axle load, unladen 8349kg
Fully Loaded 23400kg
