Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical

Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical

Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical
Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical
Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T45
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Rock Button Bit Color: Green & Others
Face Design: Flat;Convex;Concave Inserts Design: Spherical; Ballistic; Parabolic
Sample: Can Be Customized According To Customer Requirement. Material: Tungsten Carbide
High Light:

70mm button bits rock drilling

,

89mm rock drill button bits

,

cnc rock drill button bits

CNC T45 Dia70-89mm Mining Rock Spherical Button Drill Bit



Description

Threaded button bits for rock drilling, a kind of top hammer drill bit and rock drill bit, is mainly used with hydraulic drill rods (pneumatic drill rods) and hydraulic rock drills (or pneumatic rock drills) in top hammer drilling. Button bits rock drilling use different forms of threads to cooperate with the drill rod to perform drilling operations.



• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T45 Button Bit Ballistic Buttons



Type Thread Button Bit
Material tungsten carbide
Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
Advantages high quality and factory prices
Boby type Normal type or retrac type
Thread R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
Tungsten carbide Spherical, ballistic,Conical,Hemispherical
Fact type Drop Center, Flat Face, Convex, Concave, etc
Color According to your requirements



Applications

• Underground mining
• Tunneling
• Quarry



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Specification

Product Code and Brief Description

Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

B1070-T45-B, T45 Button Bit, Ballistic Buttons

35°

3

-

2.2

B1370-T45-B, T45 Button Bit, Ballistic Buttons

35°

4

-

2.2

B1276-T45-B, T45 Button Bit, Ballistic Buttons

40°

2

-

2.6

B1376-T45-B-1, T45 Button Bit, Ballistic Buttons

35°

2

1

2.6

B1076-T45-B, T45 Button Bit, Ballistic Buttons

35°

3

1

2.4

B1376-T45-B-2, T45 Button Bit, Ballistic Buttons

35°

4

-

2.6

B1376-T45-B-3, T45 Button Bit, Ballistic Buttons

35°

4

-

2.6

B1279-T45-B, T45 Button Bit, Ballistic Buttons

40°

2

-

4.6

B1489-T45-B, T45 Button Bit, Ballistic Buttons

35°

2

-

4.6

B1189-T45-B, T45 Button Bit, Ballistic Buttons

35°

3

1

4.1

B1389-T45-B-1, T45 Button Bit, Ballistic Buttons

35°

4

-

4.6

B1389-T45-B-2, T45 Button Bit, Ballistic Buttons

35°

4

-

4.6

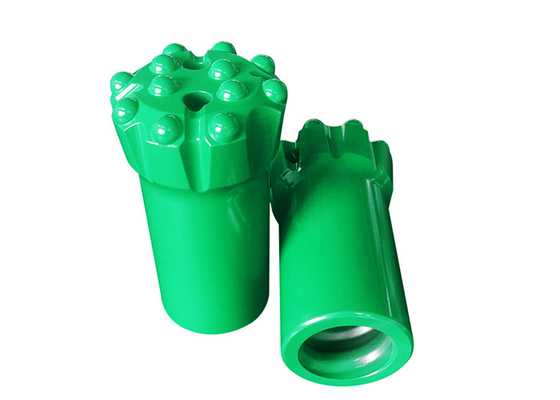

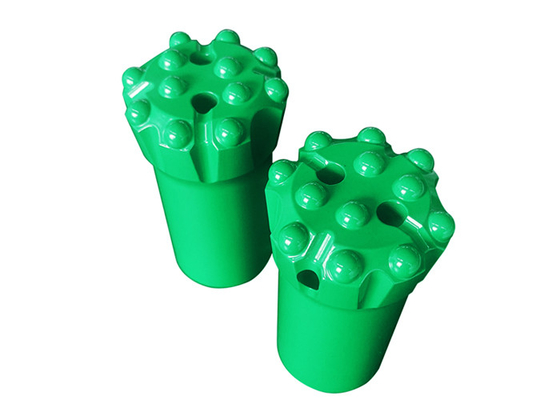

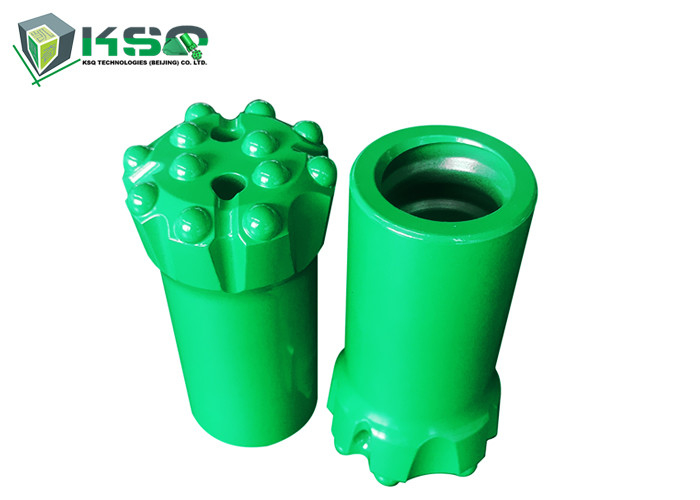

Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical 0Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical 1Cnc T45 Dia70-89mm Rock Drill Button Bits Mining Spherical 2
