Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools

Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools

  • Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools
  • Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools
  • Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools
  • Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools
Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: 4148301010-4148301023
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Drilling Tool Use: Ore Mining
Color: Green Or Others Application: Coal Mining
Usage: General High Speed Cutting Face Design: Concave/ Flat/ Convex/ Drop
High Light:

underground mining button drill bit

,

st68 button drill bit

,

st68 button bits rock drilling

CNC Milling ST68 Ballistic Underground Mining Tools Button Drill Bit



Description

This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55 Mpa to 165 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation.
.

• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: ST68 Button Bits Ballistic Buttons







Type

Thread Button Bit

Material

tungsten carbide

Use

Ore Mining, quarry,mining,blasting,construction,open bit etc.

Advantages

high quality and factory prices

Boby type

Normal type or retrac type

Thread

R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68

Tungsten carbide

Spherical, ballistic,Conical,Hemispherical

Fact type

Drop Center, Flat Face, Convex, Concave, etc

Color

According to your requirements

Applications

• Underground mining
• Tunneling
• Quarry



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Specification

Product Code and Brief Description

Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

B14102-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

2

-

8.7

B18102-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

4

-

8.7

B14105-ST68-B-1, ST68 Button Bits, Ballistic Buttons

35°

2

-

8.9

B14105-ST68-B-2, ST68 Button Bits, Ballistic Buttons

35°

4

-

8.9

B14110-ST68-B-1, ST68 Button Bits, Ballistic Buttons

35°

2

-

9.4

B14110-ST68-B-2, ST68 Button Bits, Ballistic Buttons

35°

4

-

8.9

B14115-ST68-B-1, ST68 Button Bits, Ballistic Buttons

35°

2

-

9.6

B14115-ST68-B-2, ST68 Button Bits, Ballistic Buttons

35°

4

-

9.5

B18115-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

4

-

9.5

B17127-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

3

-

11

B15127-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

4

-

10.8

B17152-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

3

-

16.2

B18152-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

3

-

16.2

B21152-ST68-B, ST68 Button Bits, Ballistic Buttons

35°

3

-

16.2

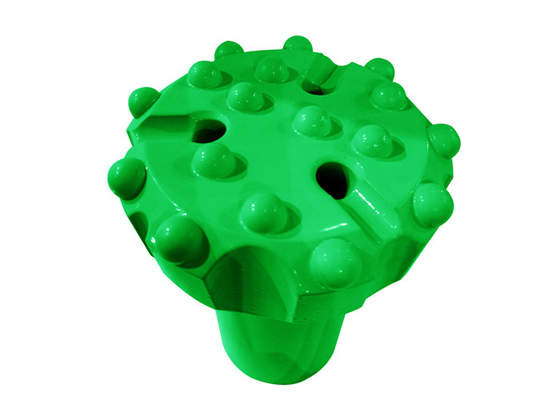

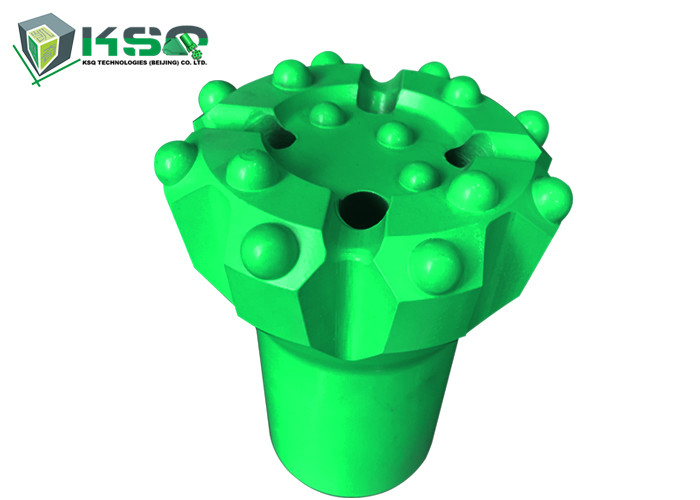

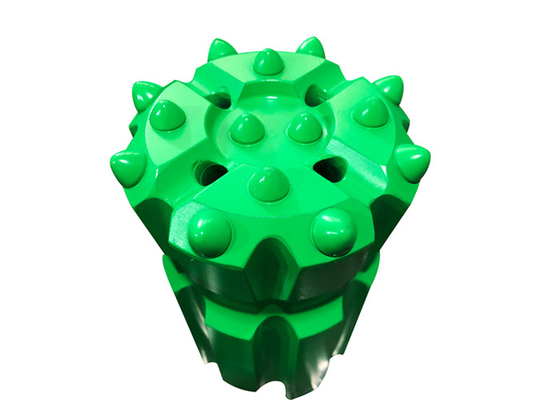

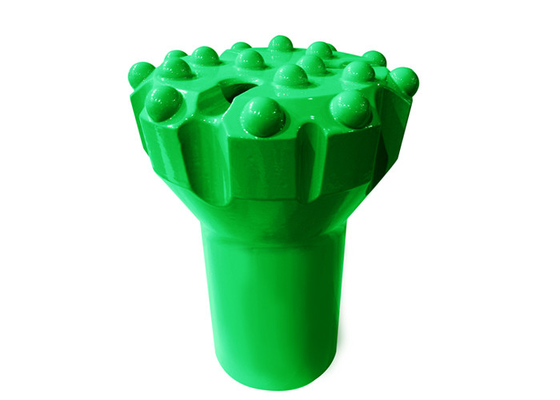

Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools 0Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools 1Cnc Milling St68 Ballistic Button Drill Bit Underground Mining Tools 2
