| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148301153-4148301157 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||
|---|---|---|---|

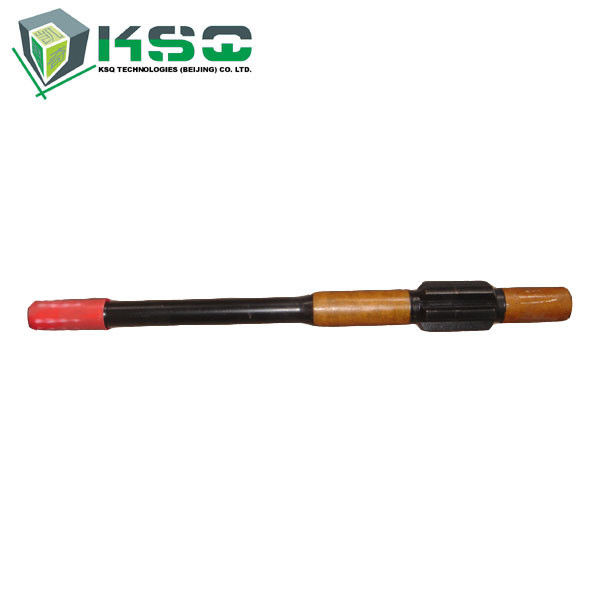

T45 Threaded Drill Shank Adapter Mining Systems
Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Shank Adapters
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
| Part Number |
Product Code and Brief Description |
Thread | Length (mm) | Weight (kg) |
Flushing Hole Size (mm) |
| 4148301153 | HL 500-38, HL 510-38 [G1] | R32 | 550 | 4.3 | |
| 4148301154 | HL 500-38, HL 510-38 [G2] | T38 | 550 | 4.6 | |
| 4148301155 | HL 500-45, HL 510-45 [G1] | R32 | 550 | 5.6 | |
| 4148301156 | HL 500-45, HL 510-45 [G2] | T38 | 550 | 5.6 | |
| 4148301157 | HL 500-45, HL 510-45 [G3] | T45 | 550 | 6.1 |
