| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R32 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Thread: | R32 | Carbide/Inserts Type: | Spherical, Ballistic, Conical, Semi-Spherical |
|---|---|---|---|
| Body Type: | Normal Type And Retrac Type | Face Design: | Flat Face And Drop Center |
| Body Material: | 45CrNiMoVa | Carbide/ Insert Brand/ Grade: | YK05 |
| Carbide Number: | 10, 11, 12, 13, 14 Buttons | Color: | Green, Golden, Or As Your Requirements |
| High Light: | industrial drill bits,milling drill bits |
||

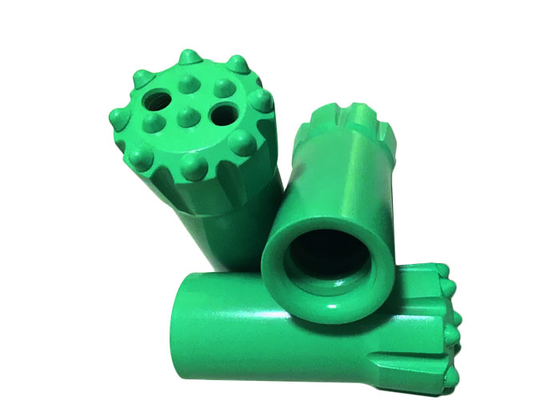

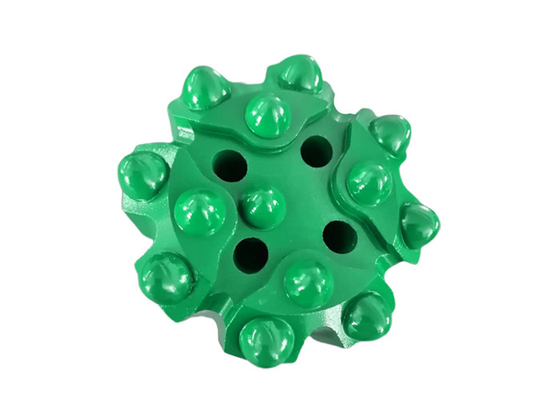

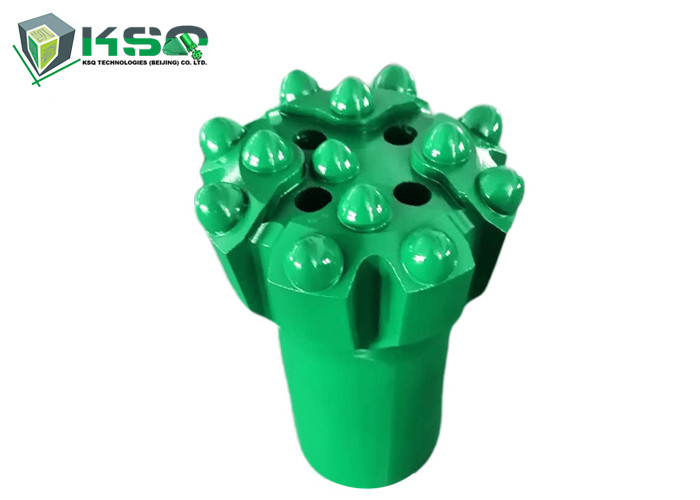

R32 Ballistic Button Drill Bit Rock Drilling Tool For Underground Mining Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Description
This type of bit is a high speed drilling bit for soft to medium rock formations (between 50 Mpa to 150 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Button Bit Ballistic Buttons
|
Type |
Thread Button Bit |
|
Material |
tungsten carbide |
|
Use |
Ore Mining, quarry,mining,blasting,construction,open bit etc. |
|
Advantages |
high quality and factory prices |
|
Boby type |
Normal type or retrac type |
|
Thread |
R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68 |
|
Tungsten carbide |
Spherical, ballistic,Conical,Hemispherical |
|
Fact type |
Drop Center, Flat Face, Convex, Concave, etc |
|
Color |
According to your requirements |
Applications
• Underground mining
• Tunneling
Specification
| Product Code and Brief Description | Angle |
Front Flushing Holes |
Side Flushing Holes |
Weight (kg) |
| B741-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 1 | 1 | 0.7 |
| B743-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 1 | 2 | 0.7 |
| B843-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 2 | - | 0.7 |
| B943-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 3 | 1 | 0.7 |
| B745-R32-B, R32 Button Bit, Ballistic Buttons | 30° | 1 | 2 | 0.8 |
| B845-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 2 | 2 | 0.8 |
| B945-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 3 | 1 | 0.8 |
| B748-R32-B, R32 Button Bit, Ballistic Buttons | 35° | 1 | 1 | 0.9 |
| B848-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 2 | - | 0.9 |
| B948-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 3 | - | 0.9 |
| B851-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 2 | - | 1 |
| B951-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 3 | 1 | 1 |
| B954-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 3 | 1 | 1 |
| B957-R32-B, R32 Button Bit, Ballistic Buttons | 35° | 3 | - | 1.3 |
| B1264-R32-B, R32 Button Bit, Ballistic Buttons | 40° | 2 | - | 1.6 |
| B957-R32-B-2, R32 Button Bit, Ballistic Buttons | 35° | 3 | - | 1.3 |
