| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | DTH380, length 1550mm, thread API 4 1/2" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 50-1600 pieces |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 1-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | Drill Bit, Dth Hammer | Material: | Tungsten Carbide And High Strength Alloy Steel |
|---|---|---|---|
| Processing: | CNC Milling And Proprietary Heat Treatment | Series: | CIR, BR, COP,DHD,MISSION,QL,SD,NUMA |
| Color: | Green,blue,golden Etc | Impact/min: | 860-1510 |
| Bit Shank: | DHD380-203/216/230/254/310/350 | Advantage: | Good Quality And Lower Price |
| High Light: | down hole hammer,down the hole hammer |
||

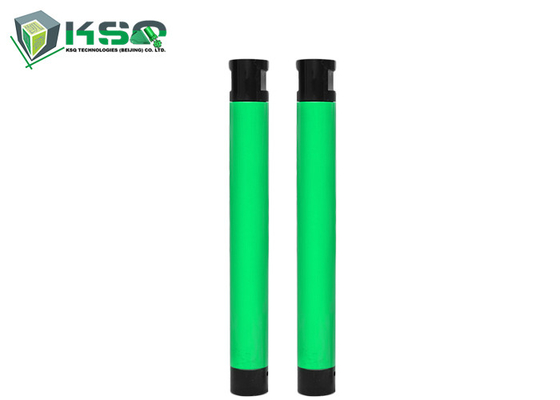

DTH380 1550mm Low Air Pressure / High Air Pressure DTH Hammers and Bits
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Specification of DTH Bits
|
Low Air Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
CIR80 |
80 |
2*12, 2*12 |
6*13 |
2 |
|
2 |
CIR90 |
90 |
4*12 |
6*14 |
3 |
|
3 |
93 |
4*12 |
6*14 |
3 |
|
|
4 |
95 |
4*12 |
6*14 |
3 |
|
|
3" High Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
DHD3.5 / M30 |
90 |
4*12, 2*12 |
8*12 |
2 |
|
2 |
95 |
4*12, 2*12 |
8*12 |
2 |
|
|
3 |
100 |
4*13, 2*13 |
8*13 |
2 |
|
|
4 |
105 |
4*14, 2*14 |
8*14 |
2 |
|
|
4" High Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
DHD340 / SD4 / QL40 / M40 |
110 |
4*14, 2*14 |
8*14 |
2 |
|
2 |
115 |
4*14, 2*14 |
8*14 |
2 |
|
|
3 |
121 |
4*14, 2*14 |
8*14 |
2 |
|
|
4 |
127 |
4*14, 3*14 |
8*14 |
2 |
|
|
5 |
130 |
4*14, 3*14 |
8*16 |
2 |
|
|
6 |
133 |
4*14, 3*14 |
8*16 |
2 |
|
|
5" High Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
DHD350 / SD5 / QL50 / M50 |
130 |
3*14, 4*14 |
9*16 |
2 |
|
2 |
133 |
3*14, 4*14 |
9*16 |
2 |
|
|
3 |
140 |
3*16, 4*16 |
9*16 |
3 |
|
|
4 |
146 |
3*16, 4*16 |
9*16 |
3 |
|
|
5 |
152 |
3*16, 5*16 |
9*18 |
3 |
|
|
6" High Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
DHD360 / SD6 / QL60 / M60 |
152 |
4*16, 4*16 |
8*18 |
2 |
|
2 |
155 |
4*16, 4*16 |
8*18 |
2 |
|
|
3 |
159 |
4*16, 4*16 |
8*18 |
2 |
|
|
4 |
165 |
4*16, 4*16 |
8*18 |
2 |
|
|
5 |
172 |
4*18, 4*18 |
8*18 |
2 |
|
|
6 |
178 |
4*18, 4*18 |
8*18 |
2 |
|
|
7 |
190 |
3*18, 5*18 |
9*18 |
3 |
|
|
8 |
203 |
3*18, 6*18 |
9*18 |
3 |
|
|
8" High Pressure DTH Bits |
|||||
|
|
Type |
Diameter(mm) |
Buttons |
Flushing Holes |
|
|
Front(No*mm) |
Gauge(No.*mm) |
||||
|
1 |
DHD380 / SD8 / QL80 / M80 |
200 |
6*18, 6*18 |
9*18 |
3 |
|
2 |
203 |
6*18, 6*18 |
9*18 |
3 |
|
|
3 |
216 |
6*18, 6*18 |
9*18 |
3 |
|
|
4 |
219 |
6*18, 6*18 |
9*18 |
3 |
|
|
5 |
222 |
6*18, 9*18 |
9*18 |
3 |
|
|
6 |
226 |
3*18, 5*18 |
12*18, 6*18 |
3 |
|
|
7 |
229 |
3*18, 5*18 |
12*18, 6*18 |
3 |
|
|
8 |
241 |
3*18, 5*18 |
12*18, 6*18 |
3 |
|
|
9 |
251 |
3*18, 6*18 |
12*18, 6*18 |
3 |
|
|
10 |
254 |
3*18, 7*18 |
12*18, 6*18 |
3 |
|
|
11 |
270 |
3*18, 8*18 |
12*18, 6*18 |
3 |
|
|
12 |
305 |
6*18, 8*18 |
12*18, 9*18 |
3 |
|
Technical Manual of DTH Hammer
|
Low Pressure DTH Hammer |
Model |
Drilling Diameter (mm) |
Hammer Length (mm) |
External Diameter (mm) |
Working Pressure (Mpa) |
Air Consumption (m3/min) |
Torque (N.m) |
Impact Frequency (n/min) |
|
1 |
DTH65B |
ø68 - 70 |
745 |
ø61.2 |
0.5 - 0.7 |
2.5 |
51 |
≥810 |
|
2 |
DTH70 |
ø72 - 74 |
803 |
ø67.2 |
0.5 - 0.7 |
3 |
70 |
≥810 |
|
3 |
DTH76 |
ø74 - 76 |
766 |
ø67.2 |
0.5 - 0.7 |
3 |
75 |
≥810 |
|
4 |
DTH80 |
ø80 - 82 |
796 |
ø72 |
0.5 - 0.7 |
5 |
81 |
≥800 |
|
5 |
DTH80-II |
ø75 - 80 |
756 |
ø67 |
0.5 - 0.7 |
3 |
75 |
≥810 |
|
6 |
DTH80X |
ø80 - 82 |
756 |
ø72 |
0.5 - 0.7 |
4.5 |
75 |
≥800 |
|
7 |
DTH80XD |
ø80 - 90 |
735 |
ø74 |
0.5 - 0.7 |
5.5 |
85 |
≥800 |
|
8 |
DTH90 |
ø90 - 130 |
796 |
ø80.2 |
0.5 - 0.7 |
6 |
110 |
≥820 |
|
9 |
DTH90-I |
ø90 - 130 |
796 |
ø80 |
0.5 - 0.7 |
5.5 |
120 |
≥820 |
|
10 |
DTH110 |
ø110 - 150 |
838 |
ø98 |
0.5 - 0.7 |
11 |
180 |
≥830 |
|
11 |
DTH150 |
ø150 - 185 |
908 |
ø137 |
0.5 - 0.7 |
17 |
340 |
≥800 |
|
12 |
DTH170 |
ø170 - 250 |
1023 |
ø156 |
0.5 - 0.7 |
19.5 |
420 |
≥790 |
|
High Pressure DTH Hammer |
Model |
Drilling Diameter (mm) |
Hammer Length (mm) |
External Diameter (mm) |
Working Pressure (Mpa) |
Air Consumption (m3/min) |
Torque (N.m) |
Impact Frequency (n/min) |
|
1 |
DTH330 |
ø82 - 85 |
867 |
ø71 |
0.8 - 2.1 |
3 - 12 |
150 |
≥800 |
|
2 |
DTH335 |
ø90 - 93 |
908 |
ø81 |
0.8 - 2.1 |
4.3 - 14.2 |
205 |
950 - 1500 |
|
3 |
DTH340 |
ø105 - 130 |
1052 |
ø92 |
0.8 - 2.1 |
3.5 - 18 |
304 |
≥800 |
|
4 |
DTH345 |
ø105 - 130 |
1034 |
ø98 |
0.8 - 2.1 |
3.5 - 15 |
335 |
≥800 |
|
5 |
DTH345K |
ø110 - 130 |
994 |
ø98 |
0.8 - 2.1 |
3.5 - 15 |
400 |
≥820 |
|
6 |
DTH350 |
ø130 - 152 |
1387 |
ø114 |
0.8 - 2.1 |
5.7 - 18 |
590 |
810 - 1470 |
|
7 |
DTH355 |
ø130 - 152 |
1220 |
ø124 |
0.8 - 2.1 |
6.5 - 18 |
700 |
810 - 1500 |
|
8 |
DTH355K |
ø130 - 152 |
1098 |
ø124 |
0.8 - 2.1 |
4.5 - 18 |
800 |
840 - 1500 |
|
9 |
DTH360 |
ø152 - 305 |
1450 |
ø136 |
0.8 - 2.1 |
8.5 - 25 |
822 |
820 - 1475 |
|
10 |
DTH380 |
ø203 - 350 |
1551 |
ø181 |
0.8 - 2.1 |
12 - 31 |
1560 |
860 - 1510 |
|
11 |
DTH3120 |
ø302 - 508 |
1934 |
ø275 |
0.8 - 2.1 |
14 - 45 |
2410 |
980 - 1446 |
