| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Hex Tapered Rod |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box or Carton Box |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Product Name: | Tapered Drilling Rod | Color: | Customized |
|---|---|---|---|
| Application: | Mining Operations, Drifting And Tunneling, Quarrying, Construction | Use: | Tunneling, Mining,Quarrying |
| Taper: | 7°,11°,12° | Material: | Alloy Steel |
| High Light: | quarrying tapered drill rod,12 degree tapered drill rod,11 degree hexagonal rock drill rod |
||

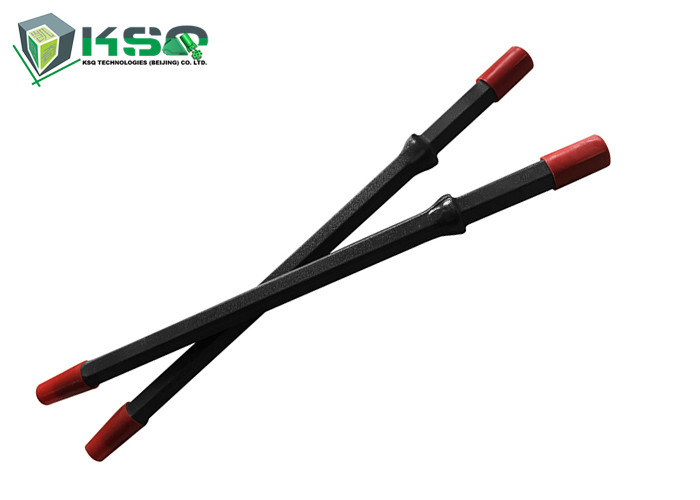

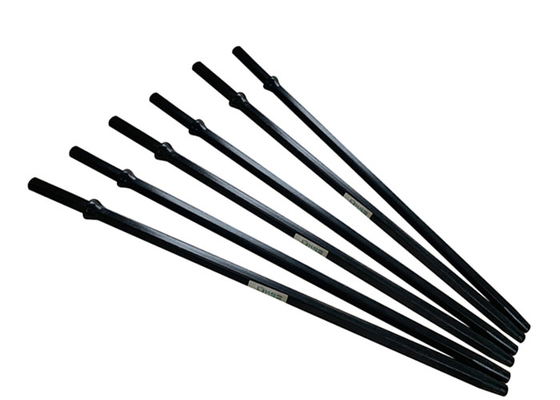

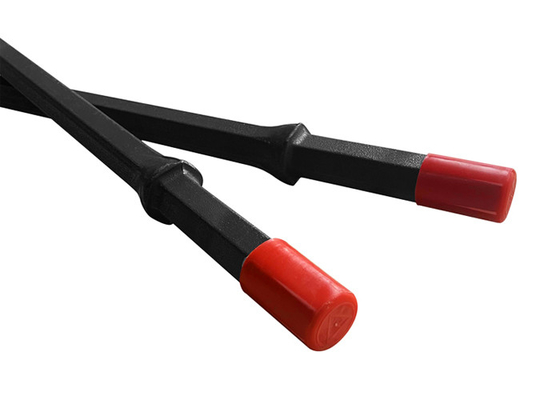

Quarrying Tool 7 11 And 12 Degree Durable Quality Tapered Hexagonal Rock Drill Rod
Product Description:
Tapered drill rod is widely used in underground mines and construction projects. Compared with the integral drill steel, there is energy loss in the cone joint of taper rod. The tapered rod can be equipped with a variety of bit to drill holes of different caliber. The bit can be repaired or replaced after wear, greatly reducing the construction cost.
Application:
• Quarrying
• Underground mining
• Down the hole rock drilling
Competitive Advantages:
• Low use cost,low natural power consumption, easy installation and disassembly, long service life.
• Valveless air distribution, more reliable.
• improved detection methods, advanced testing equipment, and strictly control the quality to ensure the production of high-quality products.
Tapered Rock Drilling Tools - 7 degree
Shank 22 x 108mm
| Length | Weight | Part Number | ||||
| mm | foot | kg | ||||
| 600 | 2 | 1.93 | 4148300179 | |||
| 800 | 2 5/8 | 2.54 | 4148300180 | |||
| 1000 | 3 2/7 | 3.15 | 4148300181 | |||
| 1200 | 4 | 3.76 | 4148300182 | |||
| 1500 | 5 | 4.68 | 4148300183 | |||
| 1600 | 5 1/4 | 4.98 | 4148300184 | |||
| 1800 | 6 | 5.59 | 4148300185 | |||
| 2000 | 6 5/9 | 6.2 | 4148300186 | |||
| 2200 | 7 2/9 | 6.81 | 4148300187 | |||
| 2300 | 7 5/9 | 7.12 | 4148300188 | |||
| 2400 | 7 7/8 | 7.42 | 4148300189 | |||
| 2500 | 8 1/5 | 7.73 | 4148300190 | |||
| 2600 | 8 1/2 | 8.03 | 4148300191 | |||
| 3000 | 9 5/6 | 9.25 | 4148300192 | |||
| 3500 | 11 1/2 | 10.78 | 4148300193 | |||
| 4000 | 13 1/8 | 12.3 | 4148300194 | |||
| 4500 | 14 3/4 | 13.83 | 4148300195 | |||
| 5000 | 16 2/5 | 15.35 | 4148300196 | |||
| 5500 | 18 | 16.88 | 4148300197 | |||
| 6000 | 19 2/3 | 18.3 |
4148300198 |
|||
Other Specifications:
| Hex Tapered Rod | Length | Weight | Product Code | |
| mm | ft | kg | ||
|
11° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") |
610 | 2 | 2.2 | H22-11D-610 |
| 1220 | 4 | 4.1 | H22-11D-1220 | |
| 1830 | 6 | 5.9 | H22-11D-1830 | |
| 2000 | 6 5/9 | 6.4 | H22-11D-2000 | |
| 2435 | 8 | 7.8 | H22-11D-2435 | |
| 2600 | 8 5/9 | 8.3 | H22-11D-2600 | |
| 3200 | 10 1/2 | 10.1 | H22-11D-3200 | |
| 3655 | 12 | 11.5 | H22-11D-3655 | |
| 4000 | 13 1/8 | 12.6 | H22-11D-4000 | |
| 4800 | 15 3/4 | 14.9 | H22-11D-4800 | |
| 5600 | 18 3/8 | 17.4 | H22-11D-5600 | |
| 6400 | 21 | 19.8 | H22-11D-6400 | |
| 7200 | 23 5/8 | 22.2 | H22-11D-7200 | |
| 8000 | 26 1/4 | 24.6 | H22-11D-8000 | |
