| Place of Origin: | Shandong, China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Taper Button Bit |
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton, wooden boxes or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000 pcs per month |
| Material: | Tungsten Carbide | Bit Dia.: | 32mm To 70mm |
|---|---|---|---|
| Buttons: | 4, 5 , 6 , 7, 8 Buttons | Skirt: | Short Skirt, Long Skirt |
| Flushing Holes: | 2 Or 3 | Taper Degree: | 4, 7, 11, 12 Degree |
| Button Shape: | Ballistic, Spherical, Conical | Shank Size: | Hex 19mm, 22mm, 25mm |

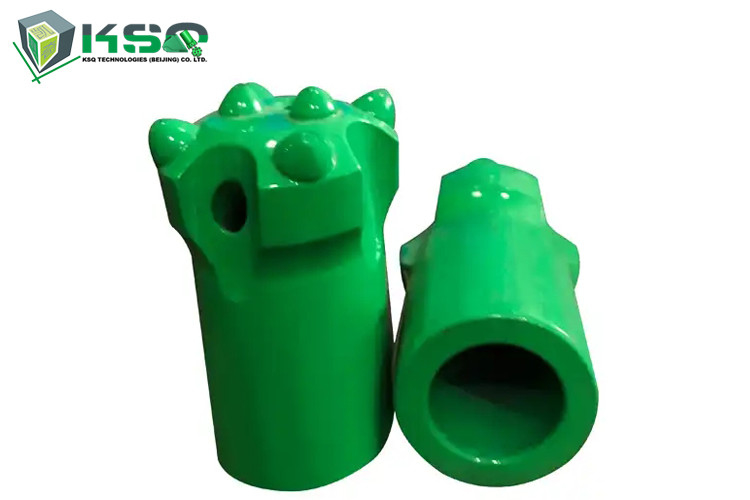

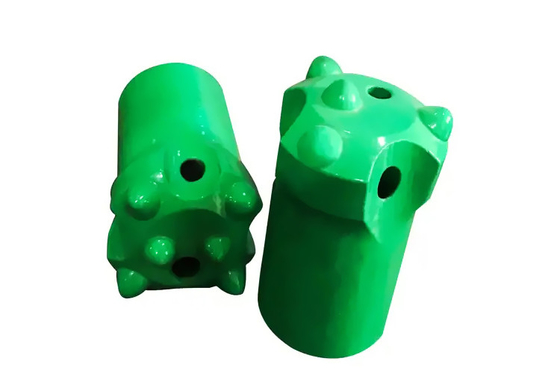

| High Light: | 7 degree tapered button bit,42mm tapered button bit |
||
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
• Color: Green,Blue or Based on Customer requirements
| Tapered drilling tools Types | Diameter(mm) | Taper Angle (Degree) | Skirt | Weight (kg) |
| Tapered chisel bits | 20-60mm | 7°,11°,12° | Normal, Length | 0.15 - 0.45 |
| Tapered cross bits | 32-60mm | Normal, Length | 0.18 - 0.7 | |
| Tapered button bits | 30-55mm | Normal, Length |
0.2 - 0.5 |
| Product Code and Brief Description | Angle | Front Flushing Holes | Side Flushing Holes | Weight (kg) |
| BL732-11D-22, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.3 |
| BL733-11D-22, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.31 |
| BL833-11D-22, 11° Tapered Button Bit, Long Skirt | 40° | 1 | 1 | 0.31 |
| BL835-11D-22, 11° Tapered Button Bit, Long Skirt | 40° | 1 | 1 | 0.35 |
| BL738-11D-22, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.41 |
| BL741-11D-22, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.42 |
| BL735-11D-25, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.38 |
| BL736-11D-25, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.39 |
| BL738-11D-25, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.41 |
| BL741-11D-25, 11° Tapered Button Bit, Long Skirt | 35° | 1 | 1 | 0.42 |
Specifications
| 7° Tapered Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Product Code | |||
| mm | inch | Front | Gauge | Front | Side | kg | ||
| Button Bit, Short Skirt BS4XX |
32 | 1 1/4 | 1x8 | 3x8 | 1 | 1 | 0.24 | BS432-7D-22 |
| 36 | 1 3/7 | 1x8 | 3x9 | 1 | 1 | 0.37 | BS436-7D-22 | |
| 38 | 1 1/2 | 1x8 | 3x9 | 1 | 1 | 0.37 | BS438-7D-23 | |
| 40 | 1 4/7 | 1x8 | 3x9 | 1 | 1 | 0.38 | BS440-7D-23-1 | |
| 40 | 1 4/7 | 1x9 | 3x10 | 1 | 1 | 0.4 | BS440-7D-23-2 | |
| 40 | 1 4/7 | 1x9 | 3x9 | 1 | 1 | 0.4 | BS440-7D-23-3 | |
| 42 | 1 2/3 | 1x8 | 3x9 | 1 | 1 | 0.4 | BS442-7D-23-1 | |
| 42 | 1 2/3 | 1x9 | 3x10 | 1 | 1 | 0.43 | BS442-7D-23-2 | |
| 42 | 1 2/3 | 1x9 | 3x9 | 1 | 1 | 0.43 | BS442-7D-23-3 | |
| Button Bit, Short Skirt BS6XX |
34 | 1 1/3 | 2x7 | 4x7 | 1 | 1 | 0.29 | BS634-7D-22 |
| Button Bit, Short Skirt BS7XX |
33 | 1 2/7 | 2x7 | 5x7 | 2 | 1 | 0.26 | BS733-7D-22 |
| 35 | 1 3/8 | 2x7 | 5x8 | 1 | 1 | 0.33 | BS735-7D-22 | |
| 36 | 1 3/7 | 2x7 | 5x8 | 1 | 1 | 0.37 | BS736-7D-23 | |
| 38 | 1 1/2 | 2x7 | 5x8 | 1 | 1 | 0.38 | BS738-7D-23-1 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 2 | 1 | 0.38 | BS738-7D-23-2 | |
| 40 | 1 4/7 | 2x7 | 5x9 | 1 | 1 | 0.4 | BS740-7D-23 | |
| 42 | 1 2/3 | 2x8 | 5x9 | 1 | 1 | 0.43 | BS742-7D-23 | |
| Button Bit, Long Skirt BL7XX |
32 | 1 1/4 | 2x7 | 5x7 | 1 | 1 | 0.3 | BL732-7D-22 |
| 33 | 1 2/7 | 2x7 | 5x7 | 1 | 1 | 0.31 | BL733-7D-22 | |
| 35 | 1 3/8 | 2x7 | 5x8 | 1 | 1 | 0.36 | BL735-7D-22 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 1 | 1 | 0.41 | BL738-7D-22 | |
| 41 | 1 5/8 | 2x7 | 5x9 | 1 | 1 | 0.42 | BL741-7D-23 | |
