| Place of Origin: | Shan Dong, China(Mainland) |
| Brand Name: | MIROC |
| Certification: | API / GB |
| Model Number: | Reaming Bit |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 1-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pieces per month |
| Type: | Reaming Drill Bit | Material: | 45CrNiMoV |
|---|---|---|---|
| Processing Type: | Forging | Use: | Quarrying / Tunneling / Underground Construction |
| Advantage: | OEM | Color: | Green / Black / Yellow ETC. |
| Button Bit Shape: | Spherical, Ballistic,Conical | Model: | T38, R38, R32, R25 |
| High Light: | reamer drill bit,tungsten drill bits |
||

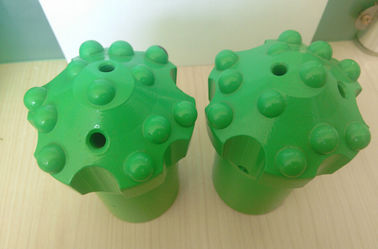

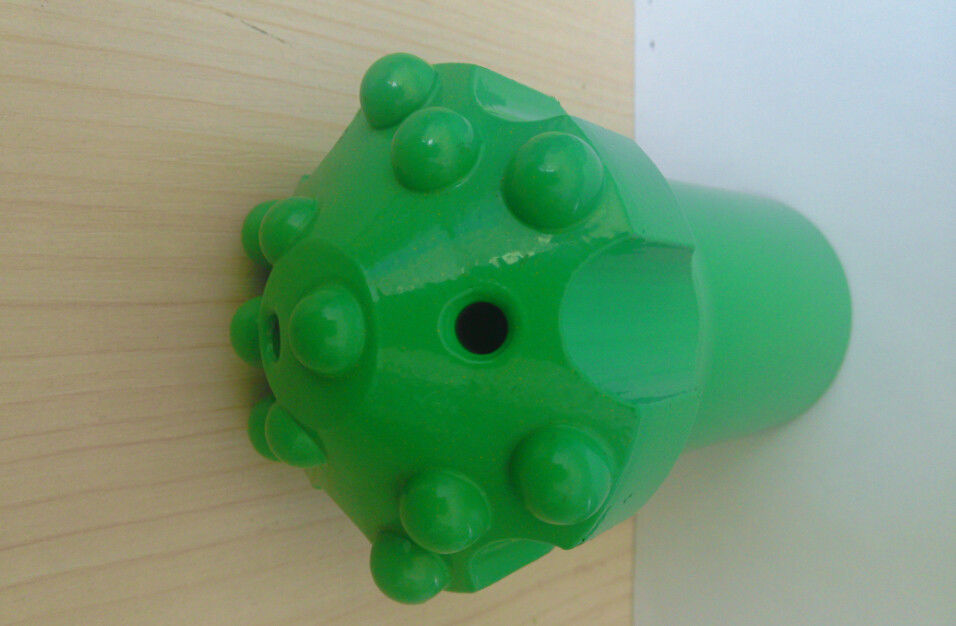

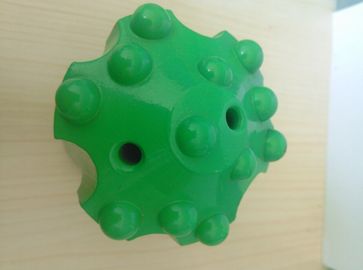

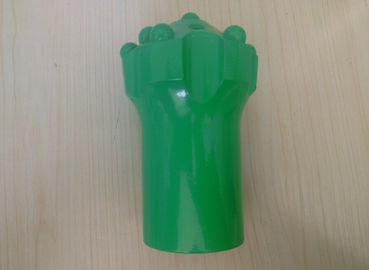

Tunneling Reaming Drill Bit T45 / T38 / R32 76mm - 127mm Diameter
Specifications
1) Thread connection: R28, R32, R38, T38, T45
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-89mm.
Description
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 2 | 43 | 2×9 | 5×10 | 1 | 1 | 0.7 |
| 3 | 45 | 2×9 | 5×11 | 1 | 1 | 0.8 |
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 7 | 64 | 3×11 | 6×12 | 3 | - | 1.6 |
| 8 | 70 | 4×11 | 8×11 | 2 | - | 2.6 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 38 | 2×7 | 5×9 | 1 | 1 | 0.6 |
| 3 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 4 | 43 | 2×9 | 5×9 | 1 | 2 | 0.8 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Contact Person: Mr. Yingkai Zhang
Tel: +86 18501231988
