Dhd 350 Mm Down The Hole Hammer Bit Drilling

Dhd 350 Mm Down The Hole Hammer Bit Drilling

  • Dhd 350 Mm Down The Hole Hammer Bit Drilling
  • Dhd 350 Mm Down The Hole Hammer Bit Drilling
Dhd 350 Mm Down The Hole Hammer Bit Drilling
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: DHD 350 152mm
Payment & Shipping Terms:
Packaging Details: dth drill bits first be packed in polybag,then be packed in plastic box or wooden box
Delivery Time: 5-15 working day
Supply Ability: 100 000pcs/month
Contact Now
Detailed Product Description
Product Name: DHD3.5 Down The Hole Bit Material: 23CrNi3Mo
Diameter: 152mm Length: 350mm
Shank Type: DHD Uses: Quarring ,Mining
High Light:

down the hole hammer bit drilling

,

350mm down the hole hammer bit

,

dhd 350 dth hammer bit

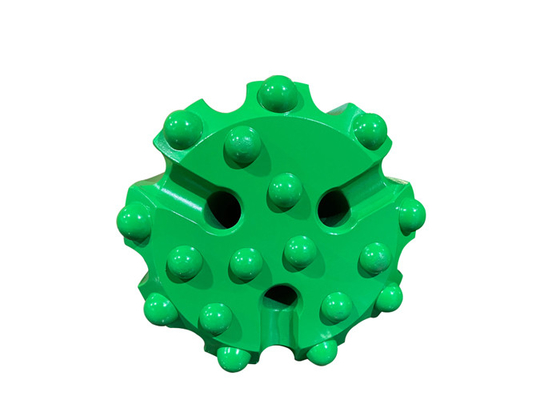

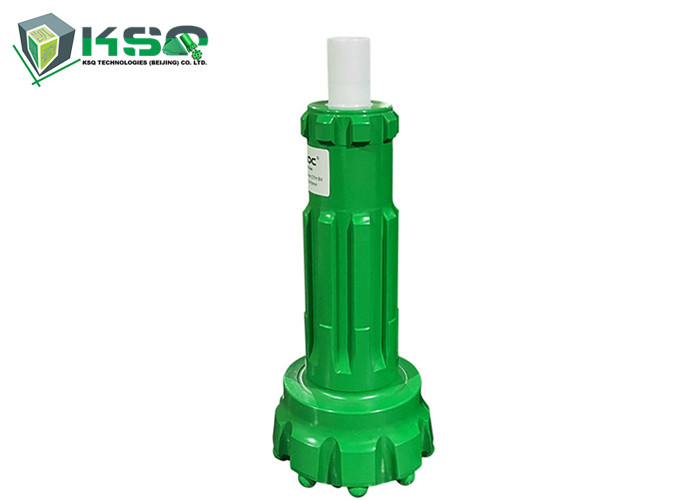

Dhd 350 Mm Down The Hole Hammer Bit Drilling 0Dhd 350 Mm Down The Hole Hammer Bit Drilling 1DHD 350 152mm Down The Hole Hammer Bit



Product Description

KSQ DTH hammer button bits include high air pressure and low air pressure two series,with advanced design concept, better wear-resistance,better impact-resistance, higher drilling speed, longer service life, widely used in large-scale open pit mining, quarry and other large-scale construction projects.



Different face style makes DTH bits suitable for various rock conditions.

Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.



Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.



Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.



DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers.

5" High Pressure DTH Bits



Type

Diameter(mm)

Buttons

Flushing Holes

Front(No*mm)

Gauge(No.*mm)

1

DHD350 / SD5 /

QL50 / M50

130

3*14, 4*14

9*16

2

2

133

3*14, 4*14

9*16

2

3

140

3*16, 4*16

9*16

3

4

146

3*16, 4*16

9*16

3

5

152

3*16, 5*16

9*18

3













6" High Pressure DTH Bits



Type

Diameter(mm)

Buttons

Flushing Holes

Front(No*mm)

Gauge(No.*mm)

1

DHD360 / SD6 /

QL60 / M60

152

4*16, 4*16

8*18

2

2

155

4*16, 4*16

8*18

2

3

159

4*16, 4*16

8*18

2

4

165

4*16, 4*16

8*18

2

5

172

4*18, 4*18

8*18

2

6

178

4*18, 4*18

8*18

2

7

190

3*18, 5*18

9*18

3

8

203

3*18, 6*18

9*18

3













8" High Pressure DTH Bits



Type

Diameter(mm)

Buttons

Flushing Holes

Front(No*mm)

Gauge(No.*mm)

1

DHD380 / SD8 /

QL80 / M80

200

6*18, 6*18

9*18

3

2

203

6*18, 6*18

9*18

3

3

216

6*18, 6*18

9*18

3

4

219

6*18, 6*18

9*18

3

5

222

6*18, 9*18

9*18

3

6

226

3*18, 5*18

12*18, 6*18

3

7

229

3*18, 5*18

12*18, 6*18

3

8

241

3*18, 5*18

12*18, 6*18

3

9

251

3*18, 6*18

12*18, 6*18

3

10

254

3*18, 7*18

12*18, 6*18

3

11

270

3*18, 8*18

12*18, 6*18

3

12

305

6*18, 8*18

12*18, 9*18

3

Dhd 350 Mm Down The Hole Hammer Bit Drilling 2Dhd 350 Mm Down The Hole Hammer Bit Drilling 3
