| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | GB |
| Model Number: | Thread button bits |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Based on Customers |
| Delivery Time: | 1-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Material: | 45CrNiMoV Tungsten Carbide | Color: | Green / Red |
|---|---|---|---|
| Process: | Forged | Advantage: | OEM. |
| Use: | Quarrying / Tunneling | Type: | T38 / T45 / T51 |
| High Light: | stone drilling tools,mining drilling tools |
||

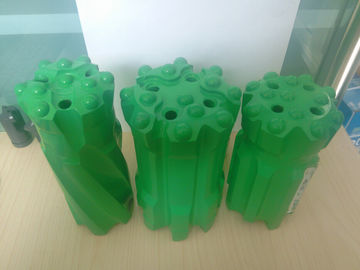

Retrac Thread Button Bit Rock Drilling Tools 127mm Drop Center for Rock Drill
our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits
We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
Specificatiom
| T51 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 |
| 2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 |
| 3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 |
| 4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 |
| T45 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
Hex Tapered Rod , 7 ° , 11° , 12°
| Length (mm) | Weight (Kg) | PN. | |||
| 1 | 600 | 1.93 | 4148300179 | ||
| 2 | 800 | 2.54 | 4148300180 | ||
| 3 | 1000 | 3.15 | 4148300181 | ||
| 4 | 1200 | 3.76 | 4148300182 | ||
| 5 | 1500 | 4.68 | 4148300183 | ||
| 6 | 1600 | 4.98 | 4148300184 | ||
| 7 | 1800 | 5.59 | 4148300185 | ||
| 8 | 2000 | 6.2 | 4148300186 | ||
| 9 | 2200 | 6.81 | 4148300187 | ||
| 10 | 2300 | 7.12 | 4148300188 | ||
| 11 | 2400 | 7.42 | 4148300189 | ||
| 12 | 2500 | 7.73 | 4148300190 | ||
| 13 | 2600 | 8.03 | 4148300191 | ||
| 14 | 3000 | 9.25 | 4148300192 | ||
| 15 | 3500 | 10.78 | 4148300193 | ||
| 16 | 4000 | 12.3 | 4148300194 | ||
| 17 | 4500 | 13.83 | 4148300195 | ||
| 18 | 5000 | 15.35 | 4148300196 | ||
| 19 | 5500 | 16.88 | 4148300197 | ||
| 20 | 6000 | 18.3 | 4148300198 | ||
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
