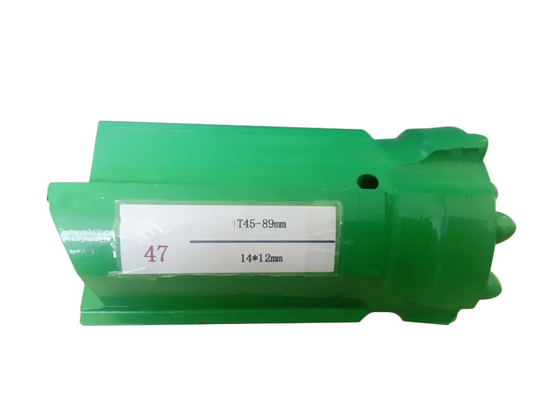

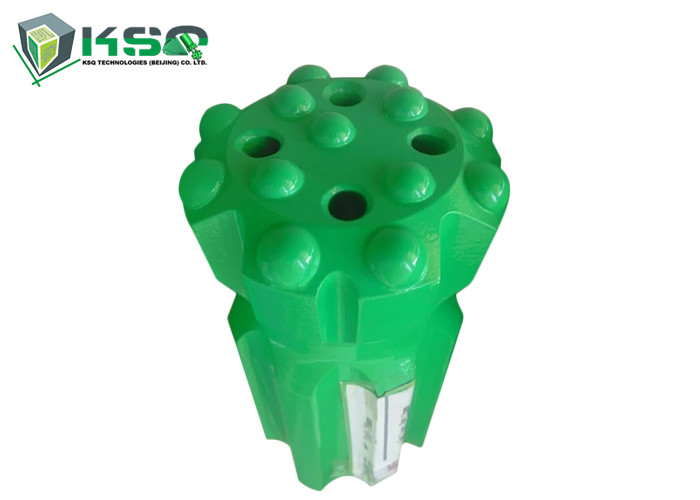

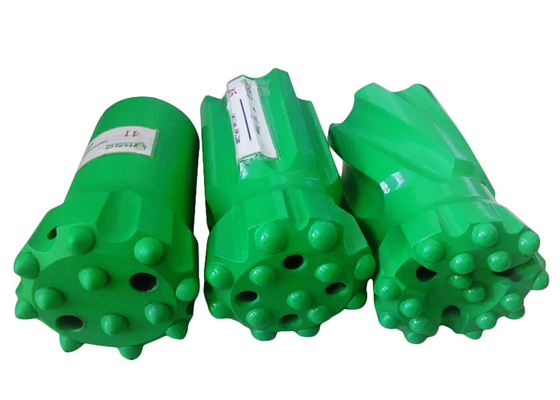

Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits

Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits

Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits
Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits
Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits
Product Details:
Place of Origin: Shan Dong China(Mainland)
Brand Name: MIROC
Certification: API / GB
Model Number: Thread Button Bit / T45 Drill Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Carton / Wooden Box or Based on Customers
Delivery Time: 1-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000 pieces per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide / YK05 Color: Green Or Based On Customers
Process: Forging Advantage: OEM.
Use: Underground Construction Type: R38 / ST58 / T45
High Light:

industrial drill bits

,

hardened steel drill bits

Ballistic T45 Quarrying Green Threaded Drilling Tools Button Drill Bit



Specifications

Retrac button bits are mainly used in loose rock mass with relatively broken rock. The retrac skirt design can assist in retrieving the drill tool, reduce the phenomenon of bit stuck and buried, and help improve the straightness of the borehole.



Type

Thread Button Bit

Material

tungsten carbide

Use

Ore Mining, quarry,mining,blasting,construction,open bit etc.

Advantages

high quality and factory prices

Boby type

Normal type or retrac type

Thread

R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68

Tungsten carbide

Spherical, ballistic,Conical,Hemispherical

Fact type

Drop Center, Flat Face, Convex, Concave, etc

Color

According to your requirements



Mainly Products

Thread Drill Bits---Diameter: 51mm  to 127mm

Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.

Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51



Drill Rod

Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

Thread Rod---R25,R28,R32,R38,T38,T45,T51.

Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.



Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits 0

Procucts Description

T45 button bit



Bit Dia.

Buttons and Size (mm)

Flushing Hole

Weight



mm

Front

Gauge

Front

Side

kg

1

70

3×11, 1×19

 6×11

3

 -

2.2

2

76

3×11,  1×11

 6×13

3

 -

2.4

3

89

3×11,  2×11

 6×13

3

1

4.1

4

102

3×13,  2×13

6×14

3

1

4.5



Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits 1

Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits 2Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits 3Ballistic T45 Quarrying Green Threaded Drilling Tools Retrac Thread Button Bits 4
