| Place of Origin: | China |
| Brand Name: | MIRCO |
| Price: | negociated price |
|---|---|
| Packaging Details: | playwood box |
| Delivery Time: | 15-20 days |
| Payment Terms: | Western Union, L/C, T/T |
| Item: | PDC Drag Bit | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool | Processing Type: | Forging |
| Application: | Water Well Drilling And Geological Drilling | Size: | 94mm, 113mm, 133mm, 144mm, 1 |
| Connect Thread: | API Reg Pin | ||
| High Light: | api certificated step drag bits,step drag bits water well drilling |
||

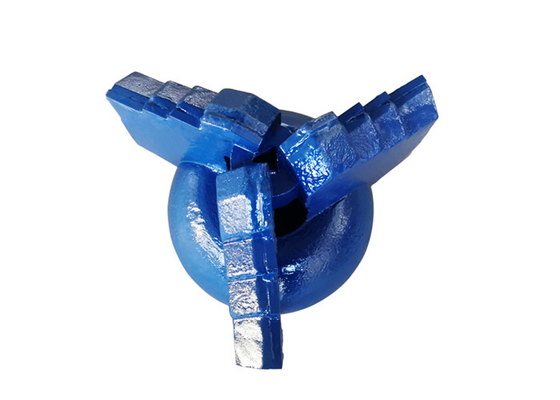

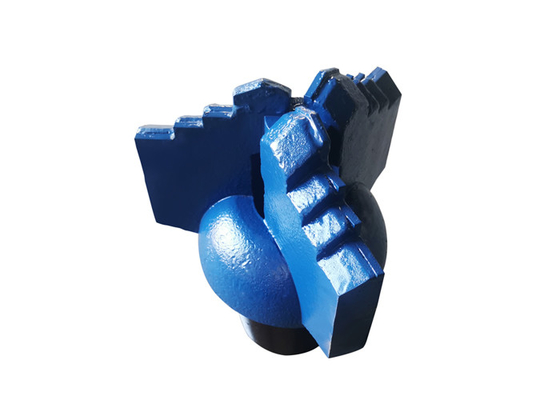

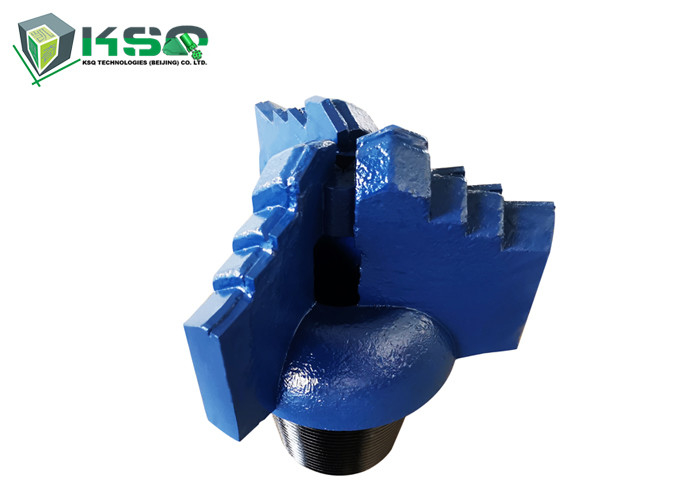

API Certificated 3 Wings/ Blades PDC Step Drag Bits For Water Well Drilling
Three wings/blades diamond pdc drill bit
PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations. The application include in mining, civil engineering and the oil industries.
Generally, it include the Three Wings, Four Wings, Five wings or blades PDC Non-Coring Bits.
Details of PDC drill bit:
1. Size: 55mm, 65mm, 75mm, 94mm, 108mm, 113mm, 133mm,145mm,153mm,175mm,185mm,193mm
2. Bit type : Pillar type, concave , three wings, four wings,five wings,six wings
3. PDC cutter size : 1303, 1304,1308,1603
4. Body materials: Steel, Tungsten Carbide matrix.
5. Suitable rock: mud stone, limestone, shale, sandstone and granite etc.
6. Color: Grey, Gold, Blue ,or as customer's request
Application:
1.PDC cutters for high speed drilling
2.All cutter are premium grade for extended bit life and durability
3.Cutter Layout is force balanced to drill aprecise roun hole and reduce bit whirl
4.Large junk slots and flushing ports
5.Advance geometric design for faster penetration
6.Gauge pads have tungsten carbide inserts for maximum wear resistance
Specification
| Drilling Diameter | Blade Count | Cutter Size | Nozzle Number | Bit Slot | Pin Size |
| 5-5/8''143mm | 3 | 1308 | 3 | 2.7''*1.5'' | 2-7/8'' |
| 5-5/8''143mm | 5 | 1308 | 5 | 2.7''*1.5'' | 2-7/8'' |
| 6''152mm | 4 | 1308 | 4 | 4''*1.5'' | 3-1/2'' |
| 6''152mm | 5 | 1308 | 5 | 4''*1.5'' | 3-1/2'' |
| 8-1/2''216mm | 4 | 1308 | 4 | 5''*2" | 4-1/2'' |
| 8-1/2''216mm | 5 | 1308 | 5 | 5''*2" | 4-1/2'' |
| 8-1/2''216mm | 6 | 1308 | 6 | 5''*2" | 4-1/2'' |
| 9-1/2''241mm | 5 | 1308 | 5 | 5''*2" | 4-1/2'' |
| 9-1/2''241mm | 6 | 1308 | 6 | 5''*2" | 4-1/2'' |
| 12-1/4''311mm | 5 | 1308 | 5 | 6''*2" | 6-5/8'' |
