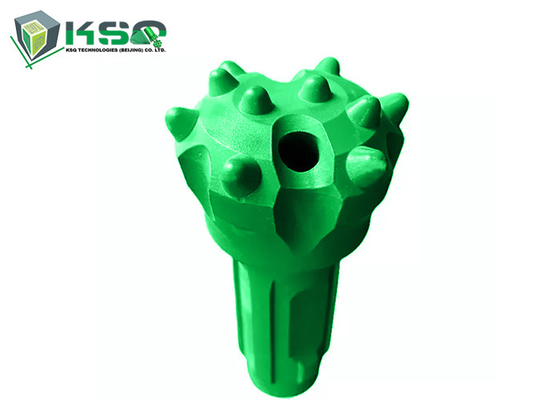

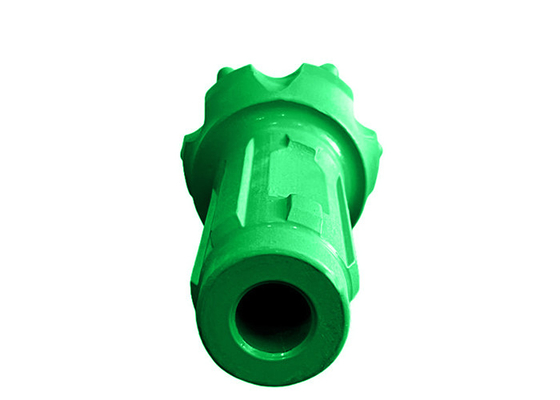

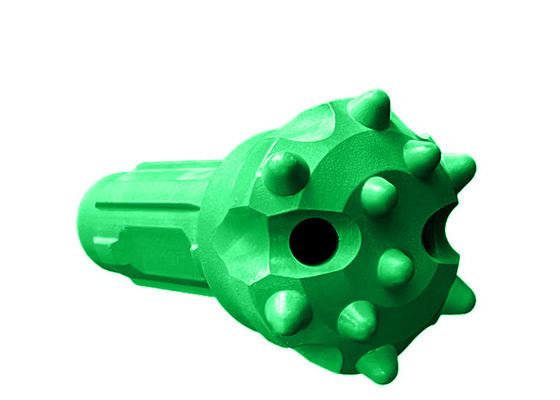

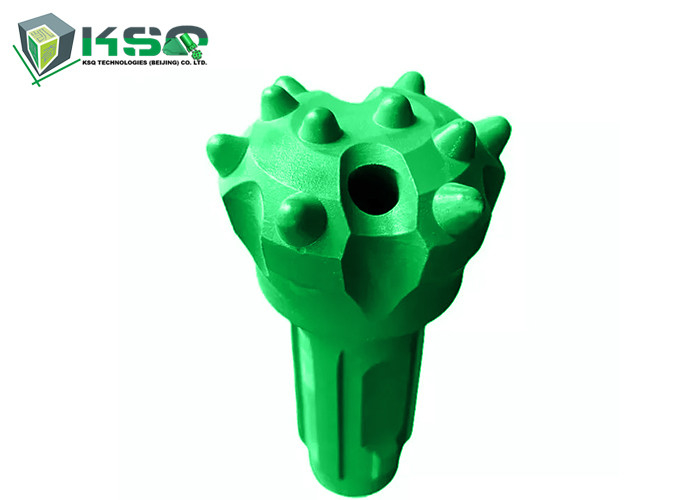

Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure

Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure

Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure
Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure
Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: CIR90
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export packing
Delivery Time: 15-20 days
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Application: Water Well Drilling
Buttons: Spherical, Ballistic Face Type: Flat, Concave, Covex
Advantage: High Wear Resistant Cemented Carbide Processig Type: Forging
Packing: Wooden Cace Or As Requrements
Highlight:

90 mm dth hammer button bits

,

water well dth hammer button bits

,

carbon dth hammers and button bits

Descriptions:



​DTH bit is for rocks cutting , and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.

Our products are compatible with most of the products manufactured by , Atlas Copco, etc. DTH drill bits are widely used in mining, tunneling, quarrying, construction and civil engineering project.



Applications:
• Underground mining
• Quarry benching operations
• Water well drilling

Competitive Advantages:
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Specification

Part Number Flushing Holes Diameter (mm) Weight (kg)
4148301721 2 95 - 98 -
4148301722 2 105 - 108 -
4148301723 2 115 - 118 -
4148301724 2 130 - 133 -
4148301725 2 140 - 143 -
4148301726 2 152 - 155 -
4148301727 2 178 - 181 -
4148301728 2 194 - 197 -
4148301729 2 203 - 206 -
4148301730 2 203 - 206 -
4148301731 2 216 - 219 -
4148301732 2 254 - 257 -
4148301733 2 273 - 276 -
4148301734 2 305 - 308 -
4148301735 2 311 - 314 -
4148301736 2 355 - 358 -
4148301737 2 381 - 384 -



Product Code and Brief Description Gauge Buttons
( No. x mm)		 Front Buttons
( No. x mm)		 DTH Hammer
DTHF335-95 8 x 14 6 x 13 DTHF335
DTHF335-105 8 x 14 6 x 13 DTHF335
DTHF345-115 8 x 14 7 x 13 DTHF345
DTHF345-130 8 x 14 7 x 13 DTHF345
DTHF355-140 8 x 14 8 x 13 DTHF355
DTHF355-152 8 x 14 7 x 13 DTHF355
DTHF365-178 8 x 14 8 x 14 DTHF365
DTHF365-194 8 x 14 8 x 14 DTHF365
DTHF365-203 8 x 14 12 x 14 DTHF365
DTHF385-203 8 x 14 12 x 14 DTHF385
DTHF385-216 8 x 14 12 x 14 DTHF385
DTHF3105-254 10 x 18 14 x 16 DTHF3105
DTHF3105-273 10 x 18 16 x 16 DTHF3105
DTHF3105-305 10 x 18 20 x 16 DTHF3105
DTHF3125-311 10 x 18 20 x 16 DTHF3125
DTHF3125-355 10 x 18 24 x 16 DTHF3125
DTHF3125-381 10 x 18 26 x 16 DTHF3125




Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 0

Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 1





Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 2

Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 3Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 4Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 5Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 6Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 7Carbon Steel Dth Hammer Button Bits Water Well Drilling Cir90 90mm Low Air Pressure 8
