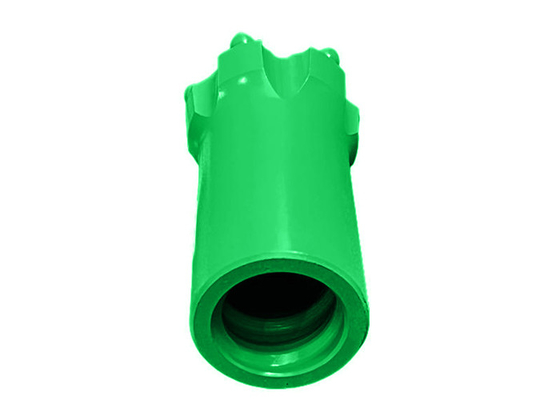

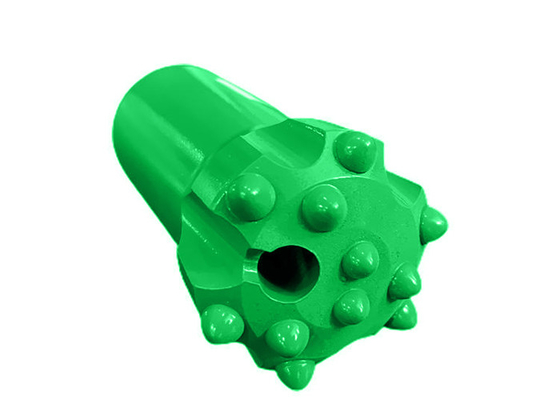

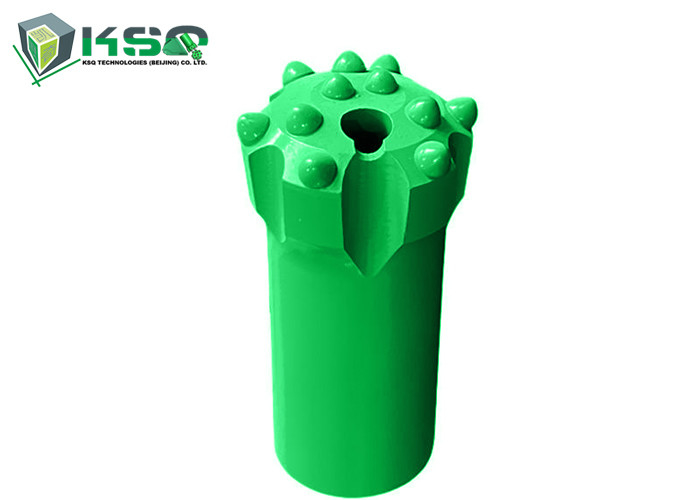

Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm

Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm

  • Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm
  • Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm
  • Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm
Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T38
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box or Carton Box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Thread: T38 Product Name: Button Bit
Application: Mining, Drifting And Tunneling, Quarrying, Construction Color: Customized
Diameter: 64mm Brand: MORIC
Diameter: 64mm-89mm
High Light:

t38 button bits rock drilling

,

tungsten carbide button bits rock drilling

,

64mm button bit for rock drilling

Thread Drill Button Bits:

Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1)Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
(2)Diameter: 38-127mm.
(3)Body: Normal body or retrac body
(4)Button size: Spherical button/Ballistic button/ Conical button
Color: Green,Blue or Based on Customer requirements
Thread Type
dia
tip size(mm)
flushing holes
weight (kg)
mm
gauge
front
side
front
T38
57
5*11
3*10
1
1
1.6
64
5*12
3*11
1
1
1.6
76
5*14
3*12
1
2
2.4
T45
70
6*11
4*10
0
2
2.4
76
6*13
4*10
0
2
2.6
89
8*12
5*12
2
2
4.5
102
8*13
6*12
2
2
5
115
8*14
6*13
2
2
6.8
T51
89
8*12
5*12
2
2
4.9
102
8*13
6*12
2
2
5.8
115
8*14
6*13
2
2
6.8
127
8*14
6*14
2
2
7.5

Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 0
Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 1Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 2Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 3






Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 4

Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 5Threaded Tungsten Carbide Button Bits Rock Drilling T38 Diameter 64mm 6
