Name: API Standard Oilfield Integral Spiral Blade Drilling Stabilizer/Near Bit And Drill String Type Stabilizer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 12 1/4"
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

API Standard Oilfield Integral Spiral Blade Drilling Stabilizer/Near Bit And Drill String Type Stabilizer

Product Details:

Place of Origin:	china
Brand Name:	MORIC
Certification:	API
Model Number:	12 1/4"

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	USD
Packaging Details:	wooden box
Delivery Time:	15-20working days
Supply Ability:	5

Contact Now

Detailed Product Description

Advantages:	OEM	Bore Hole Diameter:	130 Mm To 660 Mm
Oem:	Accept	Precision:	Accurate And Consistent Drilling Results
Sample:	Yes
Highlight:	integral spiral blade drilling stabilizer , Near bit blade drilling stabilizer , string blade drilling stabilizer

Products Description

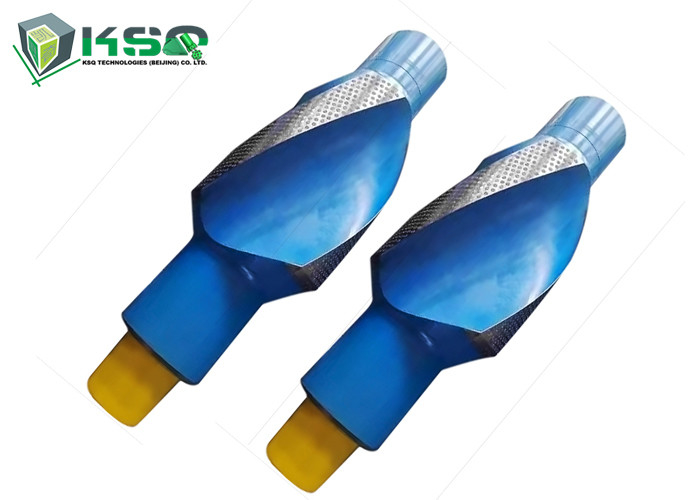

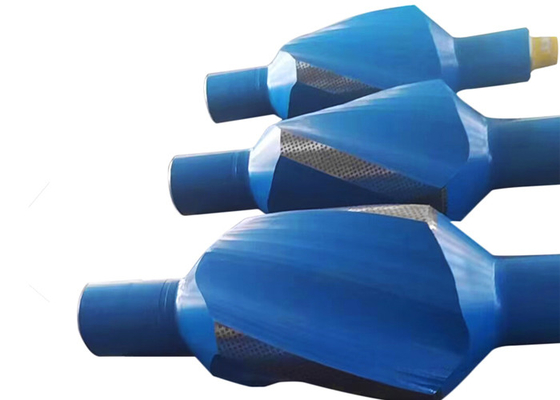

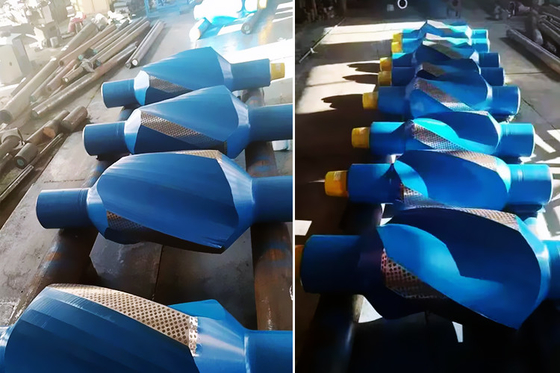

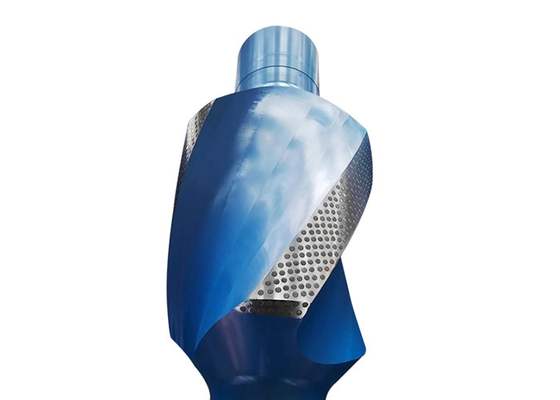

API 7-1 Oil well drilling Spiral Integral blades drilling stabilizer/Near bit stabilizer

API standard oilfield stabilizers are manufactured from one solid bar of AISI 4145H modified steel,usually have 3 blade or 4 blades.Professional heat-treatment process guarantees the mechanical strengths meet the requirements of API spec.

The drilling stabilizer is an essential part of full hole; pendulum and increase the stability decrease the incline in drilling
assembly. The high quality tungsten carbide pin could be cold coated in the work surface and on the up and down beveled shoulder.

We also could weld carbide particles in the surface according to customer requirements.
Stabilizer work with surface hardening and the hardening forms are HF1000, HF2000, HF3000, HF4000, HF5000 and HF6000. Stabilizer size 6"-28".

Bit Size	Working OD	End OD of body(mm)	ID	Length
(in)	(mm)		(mm)	(mm)

6	152.2	121	51	1200
6 1/4	158.7
6 1/2	165.1
7 1/2	190.5	159	57	1600
7 7/8	200	159	57	1600
8 3/8	212.7	159	71	1600
8 3/8	212.7	165		1800
8 1/2	215.2	159
8 1/2	215.2	165
8 3/4	222.2	178
9 1/2	241.3	178		1600
9 5/8	244.5	197		1800
9 7/8	250.8			1800
12 1/4	311.2	203	76	1800
12 1/4	311.2	209		1800
16	406	229		2000
17 1/2	444.5	241.3		2200
24	609.6
26	660.4
28	711.2
Note: Stabilizer can be made according to customer special requirement.
