| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Shank adapter |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 1-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
| Material: | Tungsten Carbide | Color: | Based On Customer Requirements |
|---|---|---|---|
| Processing: | Forging | Advantage: | OEM. |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

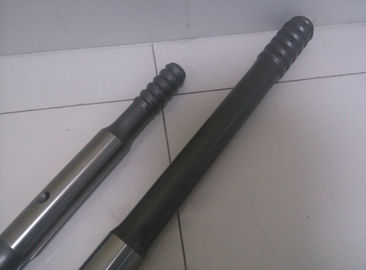

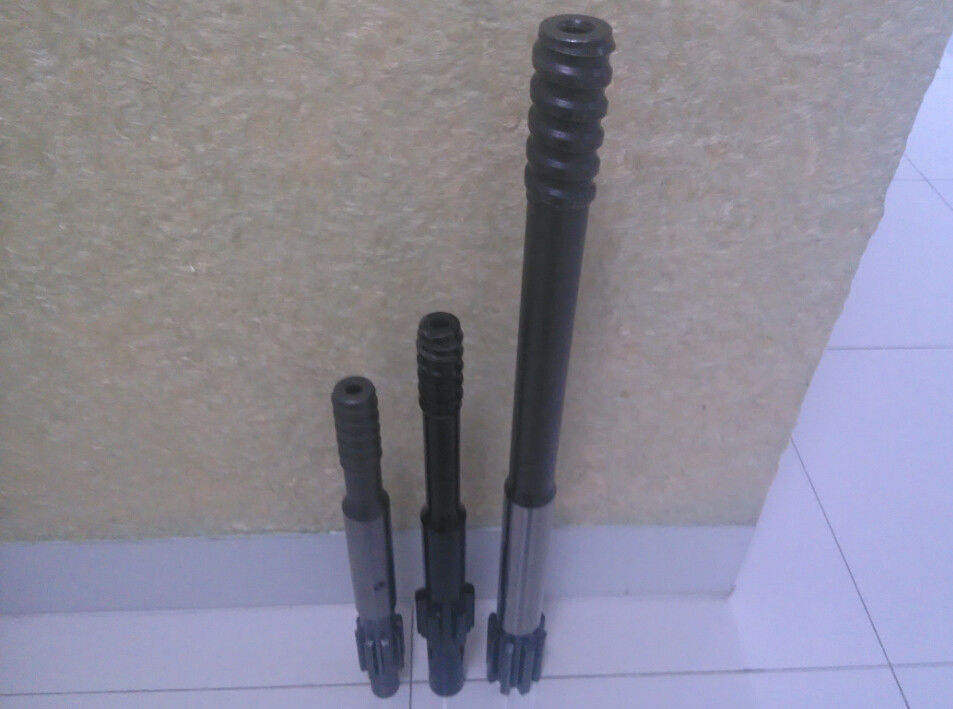

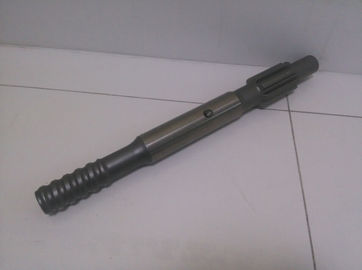

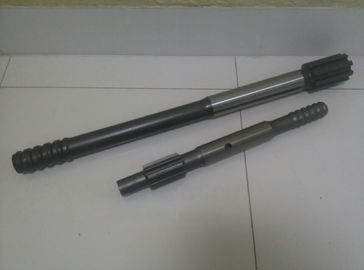

Furukawa HD 609 Forging Shank Adapter , Mining / Quarrying Hammer Drilling Tools
Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
| Part Number |
Product Code and Brief Description |
Thread | Length (mm) | Weight (kg) |
| 4148301207 | HL 1500-S80 [G1] | ST58 | 635 | 18.8 |
| 4148301208 | HL 1500-S80 [G2] | ST58 | 635 | 18.9 |
| 4148301209 | HL 1500-SPE90 [G1] | ST58 | 635 | 21.8 |
| 4148301210 | HL 1500-SPE90 [G2] | ST58 | 635 | 21.9 |
Packaging & Shipping
Wooden boxes or Carton boxes
Rock Button Bit
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 2 | 43 | 2×9 | 5×10 | 1 | 1 | 0.7 |
| 3 | 45 | 2×9 | 5×11 | 1 | 1 | 0.8 |
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 7 | 64 | 3×11 | 6×12 | 3 | - | 1.6 |
| 8 | 70 | 4×11 | 8×11 | 2 | - | 2.6 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 38 | 2×7 | 5×9 | 1 | 1 | 0.6 |
| 3 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 4 | 43 | 2×9 | 5×9 | 1 | 2 | 0.8 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
| R25 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 33 | 2x7 | 5x7 | 1 | 1 | 0.4 |
| 2 | 35 | 2x7 | 5x8 | 1 | 1 | 0.4 |
| 3 | 38 | 2x7 | 5x8 | 1 | 1 | 0.5 |
| 4 | 41 | 2x8 | 5x9 | 1 | 2 | 0.6 |
| 5 | 45 | 2x8 | 5x10 | 1 | 2 | 0.6 |
