| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | API / GB |
| Model Number: | Drill Rod |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 1-20 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 70000 pieces per month |
| Material: | 23CrNi3Mo | Color: | Black |
|---|---|---|---|
| Advantage: | OEM. | USe: | Tunneling / Quarry |
| Length: | 915-6095mm | Type: | MF-Rod, Extension Rod, Guide Speed Rod |
| High Light: | drill extension rod,rock drill rod |
||

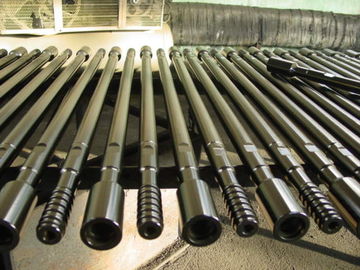

Black T45 3660mm Threaded Drill Rod Dia 46mm With Forging Process
Description
Drill rod using T38 thread system. In good rock conditions it will produce straighter holes and at least 10% higher penetration rate compared to rod and coupling sleeve combination system.
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: T38 Speed Rod T38-Round 39-T38 Flushing Hole 14.5 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
| Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
|
MF39-T38-915, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
915 | 3 | 39 | 1 1/2 | 10.7 |
|
MF39-T38-1220, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
1220 | 4 | 39 | 1 1/2 | 13.3 |
|
MF39-T38-1525, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
1525 | 5 | 39 | 1 1/2 | 15.8 |
|
MF39-T38-1830, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
1830 | 6 | 39 | 1 1/2 | 18.3 |
|
MF39-T38-3050, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
3050 | 10 | 39 | 1 1/2 | 28.5 |
|
MF39-T38-3660, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
3660 | 12 | 39 | 1 1/2 | 33.6 |
|
MF39-T38-4270, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
4270 | 14 | 39 | 1 1/2 | 38.7 |
|
MF39-T38-4880, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
4880 | 16 | 39 | 1 1/2 | 43.7 |
|
MF39-T38-5530, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
5530 | 18 1/7 | 39 | 1 1/2 | 49.2 |
|
MF39-T38-6095, T38 Speed Rod, T38-Round 39-T38, Flushing Hole 14.5 mm |
6095 | 20 | 39 | 1 1/2 | 53.9 |
