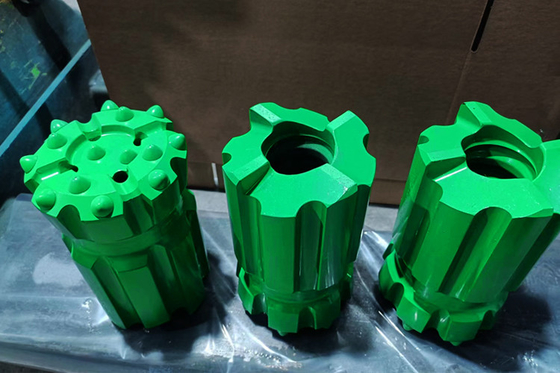

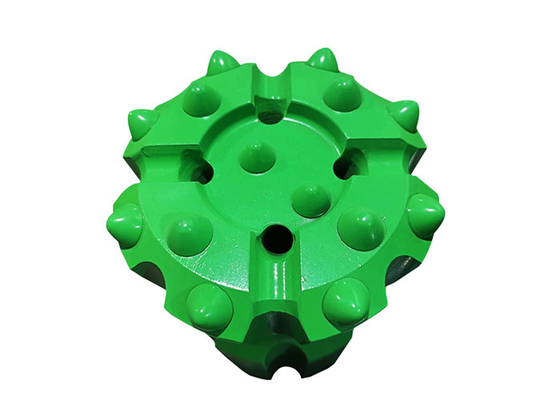

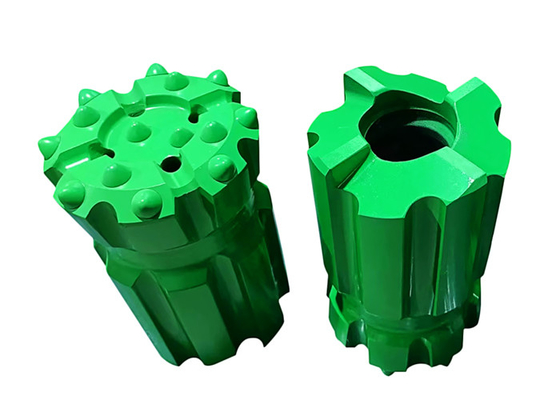

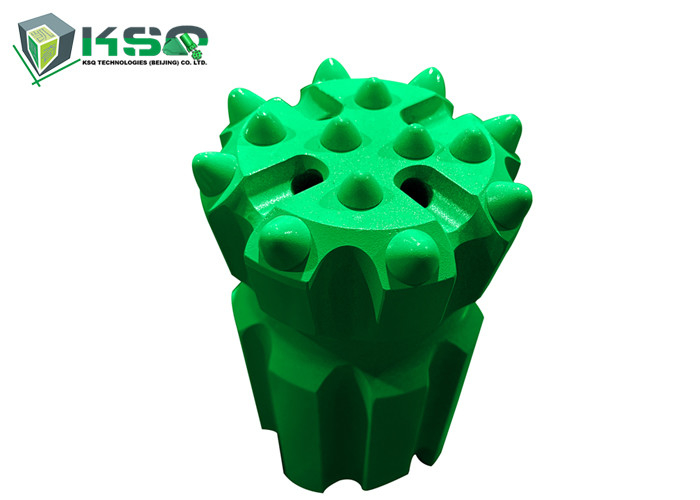

T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling

T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling

  • T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling
  • T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling
  • T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling
  • T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling
T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: T51 115mm
Payment & Shipping Terms:
Packaging Details: Carton Box or Wooden Box
Delivery Time: 5-15 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000000 Pieces per Year
Contact Now
Detailed Product Description
Name: Rock Drill Bit Material: Tungsten Carbide
Use: Ore Mining, Tunneling,Mining,Quarrying,Construction Color: Green,blue,golden Etc
Thread Type: R25,R28,R32,R38,T38,T45,T51,ST58,ST68 Button Bit Shape: Spherical, Ballistic,Conical
Face Shape: Flat Shape And Drop-center Shape
High Light:

Rock Drilling Thread Button Bits

,

T51 115mm dth button bit

,

Ballistic Spherical Thread dth button bit

T51 115mm Ballistic Spherical Thread Button Rock Drill Bits



Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

Recommended for eliminating hole deviation

• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock



Button bit and Insert types
Spherical Button Characteristics
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions



Ballistic Button Characteristics
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions

T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 0

T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 1

Specification:

Diameter Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side (kg)
Spherical
89 3 1/2 4x13 8x13 40° 2 - 4.9 4148300885
89 3 1/2 5x13 8x13 35° 2 1 4.9 4148300886
89 3 1/2 3x11, 2x11 6x13 35° 4 - 4.9 4148300887
89 3 1/2 4x11, 1x11 8x13 35° 4 - 4.9 4148300888
89 3 1/2 4x13, 1x13 8x13 35° 4 - 4.9 4148300889
102 4 4x14 8x14 40° 2 - 5.8 4148300890
102 4 6x13 8x16 35° 2 1 5.8 4148300891
102 4 3x13, 2x13 6x14 35° 3 1 5.2 4148300892
102 4 4x13, 1x13 8x14 35° 4 - 5.8 4148300893
102 4 4x13, 2x13 8x13 35° 4 1 5.8 4148300894
115 4 1/2 6x14 8x14 35° 2 - 6.8 4148300895
115 4 1/2 6x14 8x16 35° 2 - 6.8 4148300896
115 4 1/2 4x13, 2x13 8x14 35° 4 - 6.8 4148300897
115 4 1/2 4x13, 3x13 8x14 35° 4 - 6.8 4148300898
115 4 1/2 4x14, 2x14 8x16 35° 4 - 6.8 4148300899
115 4 1/2 4x13, 2x13 8x14 35° 4 - 6.8 4148300913
115 4 1/2 4x13, 3x13 8x14 35° 4 - 6.8 4148300914
115 4 1/2 4x14, 2x14 8x16 35° 4 - 6.8 4148300915

T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 2T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 3T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 4T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 5T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 6T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 7T51 115mm Ballistic Spherical Thread Button Bits Rock Drilling 8
