| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | COP32-90mm DTH Drill Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 2000pcs per month |
| Material: | Hign Manganese Steel | Use: | Well Drilling |
|---|---|---|---|
| Model Type: | COP, QL, SD, DHD, NUMA, Mission, Halco | Face Design: | Concave |
| Carbide Design: | Dome | Processing Type: | Forging |
| Diameter: | 57mm-660mm | Shank Type: | COP32 |
| High Light: | Construction DTH Drill Bit,90mm DTH Drill Bit,Carbon Steel DTH Drill Bit |
||

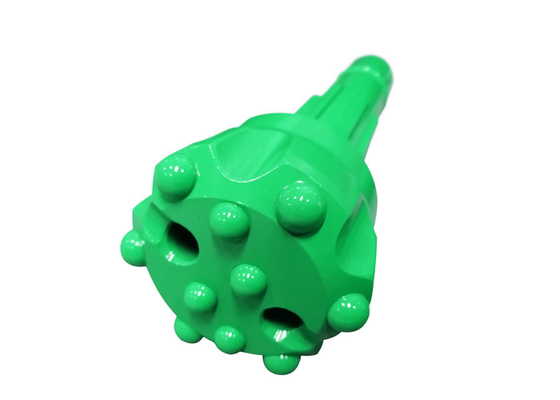

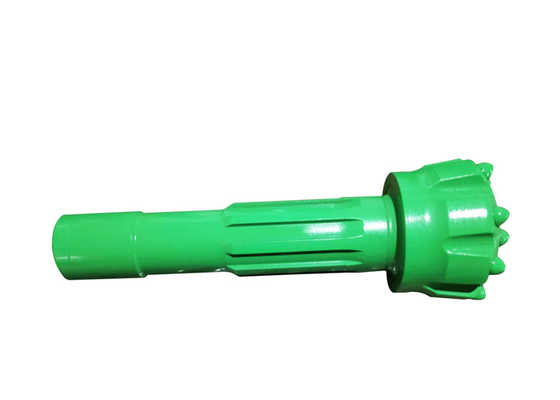

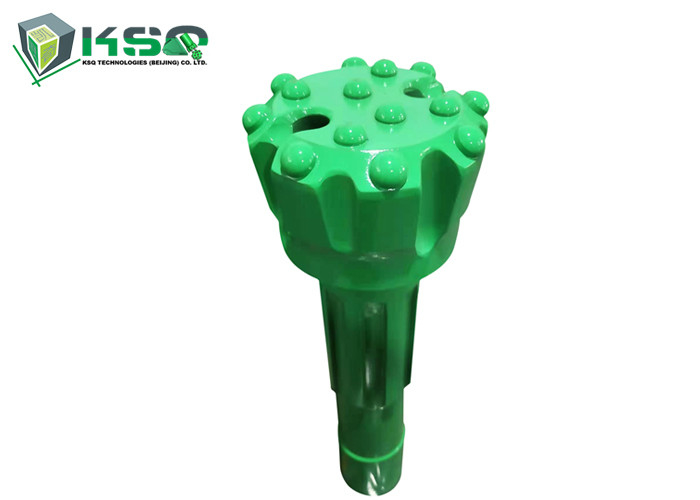

DTH bit is the tool cutting rocks, and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.
Specification
| Specification of dth hammer button bits: | Diameter: (mm) |
|
1-2 inch low air pressure DTH bits Shank: BR1, BR2, DHD2.5 |
57/64/70/76/80/82/90 |
|
3 inch high Air pressure DHT bits Shank: BR3,DHD3.5,COP34,COP32,QL30,M30,IR3.5 |
85 / 90 / 95 / 100 / 105/110 |
|
4 inch high Air pressure DHT bits Shank:DHD340,COP44,M40,SD4,QL40 |
105 / 110 / 115 / 120 / 127/130 |
|
5 inch high Air pressure DHT bits Shank:DHD350,COP54,M50,SD5,QL50 |
133 / 140 / 146 / 152 / 165 |
|
6 inch high Air pressure DHT bits Shank:DHD360,M60,SD6,QL60,COP64 |
152 / 165 / 178 / 190 / 203 |
|
8 inch high Air pressure DHT bits Shank:DHD380,COP84,M80,SD8,QL80 |
195 / 203 / 216 / 254 / 305 |
|
10 inch high Air pressure DTH bits Shank:SD10, NUMA100 |
254/270/279/295/305 |
|
12 inch high Air pressure DTH bits Shank:SD12,DHD1120,NUMA120,NUMA125 |
305/330/343/356/368/381 |
|
15 inch high Air pressure DTH bits Shank: DHD1150, SD15,NUMA125 |
381/391/435/457/483/503 |
|
Over 20 inch high Air Pressure DTH bits Shank: NUMA180,NUMA240, |
483/508/560/578/610/660 |
