| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Certification: | ISO |
| Model Number: | Drill Button Bit |
| Minimum Order Quantity: | Negotiated one |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pcs per Month |
| Thread: | T38 | Type Of Bit: | Button Bit |
|---|---|---|---|
| Application: | Mining Operations, Bench Drilling, Drifting And Tunneling, Quarrying, Construction | Material: | Tungsten Carbide And High Strength Alloy Steel |
| Color: | Black, Green, Red Or Based On Requests | Diameter, Mm: | 64, 70,76, 89 |
| High Light: | T38 Threaded Drill Button Bits,Ballistic Threaded Drill Button Bits,Rock Threaded Drill Button Bits |
||

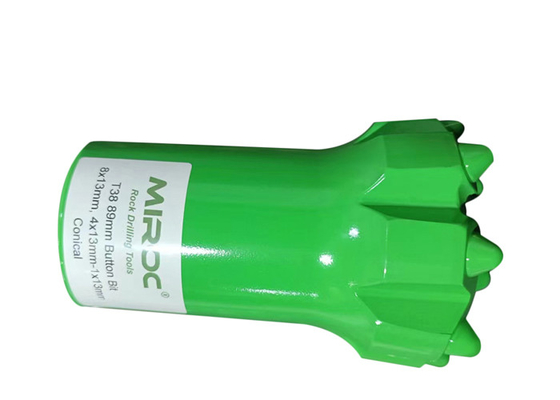

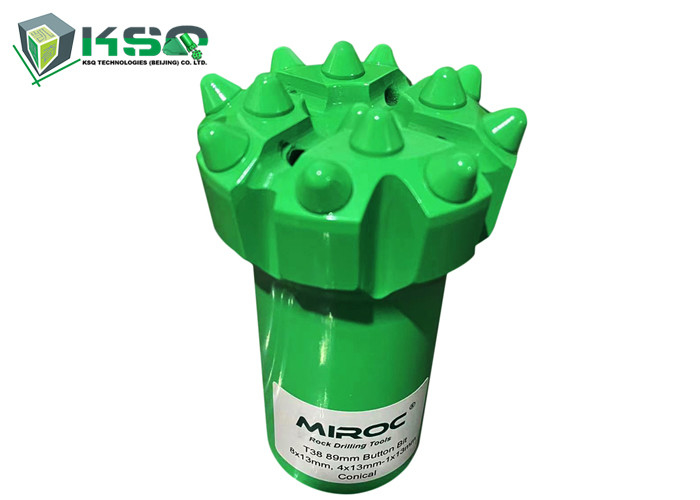

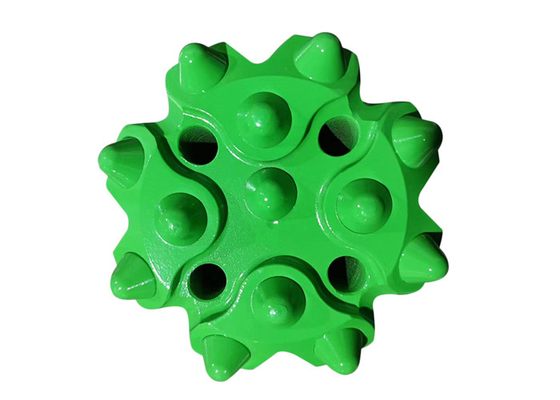

T38 Threaded Drill Bits 89mm For Rock Drilling Spherical / Ballistic Buttons
Package: Carton or Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-20 days.
P.S. We can design and manufacture products according to customers’ requirements.
Spherical Buttons
| Drill Bit | Diameter, mm | No x Buttons Diameter | Flushing Hole | Weight, kg | |||
| Front | Gauge | Angle | Front | Side | |||
| Button Bit | Spherical | ||||||
| 64 | 3x11 | 6x12 | 35 | 3 | - | 1.8 | |
| 64 | 4x10 | 8x10 | 40 | 2 | - | 1.6 | |
| 64 | 3x10,1x10 | 6x11 | 35 | 3 | - | 1.7 | |
| 70 | 4x11 | 8x11 | 40 | 2 | - | 1.9 | |
| 70 | 4x10,1x10 | 8x11 | 30 | 4 | - | 1.9 | |
| 70 | 3x10,1x10 | 6x12 | 35 | 3 | - | 1.8 | |
| 76 | 4x11 | 8x11 | 40 | 2 | - | 2.4 | |
| 76 | 5x11 | 8x13 | 35 | 2 | 1 | 2.4 | |
| 76 | 3x11,1x11 | 6x12 | 35 | 3 | 1 | 2.6 | |
| 76 | 4x11,1x11 | 8x12 | 35 | 4 | - | 2.6 | |
| 76 | 4x11,1x11 | 8x11 | 40 | 4 | - | 2.6 | |
| 89 | 4x13 | 8x13 | 40 | 2 | - | 3.3 | |
| 89 | 5x13 | 8x13 | 35 | 2 | - | 3.3 | |
| 89 | 6x11 | 8x12 | 35 | 2 | - | 3.3 | |
| 89 | 3x11,2x11 | 6x13 | 35 | 3 | 1 | 3.3 | |
| 89 | 4x11,1x11 | 8x13 | 35 | 4 | - | 3.3 | |
| 89 | 4x13,1x13 | 8x13 | 35 | 4 | - | 3.3 | |
Ballistic Buttons
| Drill Bit | Diameter, mm | No x Buttons Diameter | Flushing Hole | Weight, kg | |||
| Front | Gauge | Angle | Front | Side | |||
| Button Bit | Ballistic | ||||||
| 64 | 3x11 | 6x12 | 35 | 3 | - | 1.8 | |
| 64 | 4x10 | 8x10 | 40 | 2 | - | 1.6 | |
| 64 | 3x10,1x10 | 6x11 | 35 | 3 | - | 1.7 | |
| 70 | 4x11 | 8x11 | 40 | 2 | - | 1.9 | |
| 70 | 3x10,1x10 | 6x12 | 35 | 3 | - | 1.8 | |
| 76 | 4x11 | 8x11 | 40 | 2 | - | 2.4 | |
| 76 | 5x11 | 8x13 | 35 | 2 | 1 | 2.4 | |
| 76 | 3x11,1x11 | 6x13 | 35 | 3 | 1 | 2.6 | |
| 76 | 4x11,1x11 | 8x12 | 35 | 4 | - | 2.6 | |
| 76 | 4x11,1x11 | 8x11 | 40 | 4 | - | 2.6 | |
| 89 | 5x13 | 8x13 | 35 | 2 | - | 3.3 | |
| 89 | 6x11 | 8x12 | 35 | 2 | - | 3.3 | |
| 89 | 3x11,2x11 | 6x13 | 35 | 3 | 1 | 3.3 | |
| 89 | 4x11,1x11 | 8x13 | 35 | 4 | - | 3.3 | |
| 89 | 4x13,1x13 | 8x13 | 35 | 4 | - | 3.3 | |
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
