| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T51 89mm Button Bit |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 pieces per month |
| Name: | Button Bit | Thread: | T51 |
|---|---|---|---|
| Diameter: | 89mm | Skirt Type: | Normal Retract Skirt |
| Material: | Alloy Steel Bar And Tungsten Carbide | Button Bit Shape: | Spherical, Ballistic, Conical |
| High Light: | Tungsten Carbide Button Drill Bit,Threaded Button Drill Bit,14 Threaded Button Drill Bit |
||
T51 89mm Tungsten Carbide Drill Bits / 14 Buttons Threaded Button Bits
Product Description
Thread Button bits are made by alloy steel bar of quality and tungsten carbides.
Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.
Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock:
• Used in benching and long hole drilling.
• The bit face design is ideal for medium-hard to hard abrasive rock
Features
1. High-strength structure alloy steel and carbide.
2. Transmit intensive impact energy into the rock with the least loss of energy.
3. Longer service life.
|
Type |
Thread Button Bit |
|
Material |
tungsten carbide |
|
Use |
Ore Mining, quarry,mining,blasting,construction,open bit etc. |
|
Advantages |
high quality and factory prices |
|
Boby type |
Normal type or retrac type |
|
Thread |
R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68 |
|
Tungsten carbide |
Spherical, ballistic,Conical,Hemispherical |
|
Fact type |
Drop Center, Flat Face, Convex, Concave, etc |
|
Color |
According to your requirements |

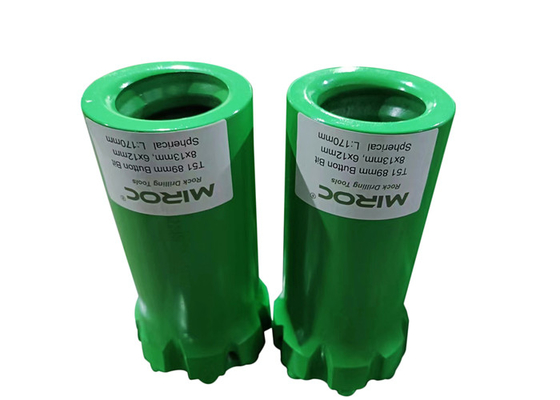

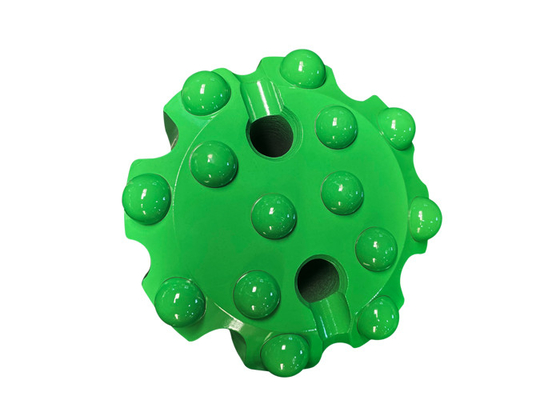

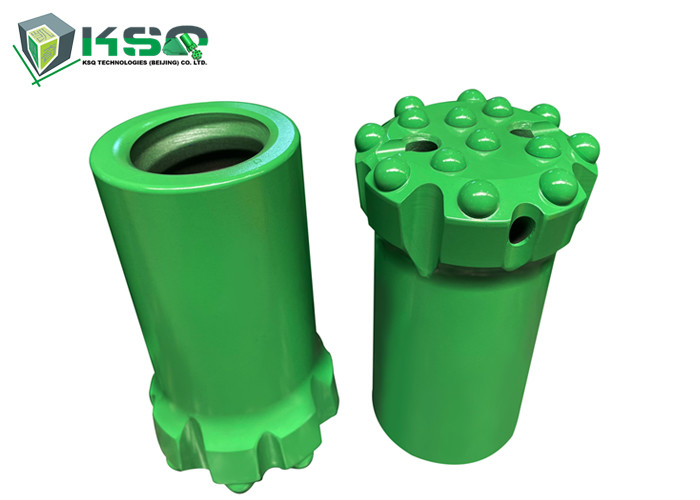

Photo:
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
T51 Thread Rock Drilling Tools:
T51 Shank Adapter
T51 Coupling Sleeve
T51 Extension Rod
T51 Speed Rod
T51 Button Bit
T51 Retrac Button Bit
T51 Reaming Bit
T51 Button Bit Specification
|
Diameter |
Buttons and Size (mm) |
Flushing Hole |
Weight |
Part Number |
||||
|
mm |
inch |
Front |
Gauge |
Angle |
Front |
Side |
(kg) |
|
|
Spherical |
||||||||
|
89 |
3 1/2 |
4x13 |
8x13 |
40° |
2 |
- |
4.9 |
4148300883 |
|
89 |
3 1/2 |
5x13 |
8x13 |
35° |
2 |
1 |
4.9 |
4148300884 |
|
89 |
3 1/2 |
3x11, 2x11 |
6x13 |
35° |
4 |
- |
4.9 |
4148300885 |
|
89 |
3 1/2 |
4x11, 1x11 |
8x13 |
35° |
4 |
- |
4.9 |
4148300886 |
|
89 |
3 1/2 |
4x13, 1x13 |
8x13 |
35° |
4 |
- |
4.9 |
4148300887 |
|
102 |
4 |
4x14 |
8x14 |
40° |
2 |
- |
5.8 |
4148300888 |
|
102 |
4 |
6x13 |
8x16 |
35° |
2 |
1 |
5.8 |
4148300889 |
|
102 |
4 |
3x13, 2x13 |
6x14 |
35° |
3 |
1 |
5.8 |
4148300890 |
|
102 |
4 |
4x13, 1x13 |
8x14 |
35° |
4 |
- |
5.8 |
4148300891 |
|
102 |
4 |
4x13, 2x13 |
8x13 |
35° |
4 |
1 |
5.8 |
4148300892 |
|
115 |
4 1/2 |
6x14 |
8x14 |
35° |
2 |
- |
6.8 |
4148300893 |
|
115 |
4 1/2 |
6x14 |
8x16 |
35° |
2 |
- |
6.8 |
4148300894 |
|
115 |
4 1/2 |
4x13, 2x13 |
8x14 |
35° |
4 |
- |
6.8 |
4148300895 |
|
115 |
4 1/2 |
4x13, 3x13 |
8x14 |
35° |
4 |
- |
6.8 |
4148300896 |
|
115 |
4 1/2 |
4x14, 2x14 |
8x16 |
35° |
4 |
- |
6.8 |
4148300897 |
|
127 |
5 |
8x14 |
8x16 |
35° |
2 |
1 |
7.5 |
4148300898 |
|
127 |
5 |
4x16, 2x13 |
8x16 |
35° |
4 |
- |
7.5 |
4148300899 |
|
127 |
5 |
4x14, 3x14 |
8x14 |
35° |
4 |
- |
7.5 |
4148300900 |
|
Ballistic |
||||||||
|
89 |
3 1/2 |
5x13 |
8x13 |
35° |
2 |
1 |
4.9 |
4148300901 |
|
89 |
3 1/2 |
3x11, 2x11 |
6x13 |
35° |
4 |
- |
4.9 |
4148300902 |
|
89 |
3 1/2 |
4x11, 1x11 |
8x13 |
35° |
4 |
- |
4.9 |
4148300903 |
|
89 |
3 1/2 |
4x13, 1x13 |
8x13 |
35° |
4 |
- |
4.9 |
4148300904 |
|
102 |
4 |
4x14 |
8x14 |
40° |
2 |
- |
5.8 |
4148300905 |
|
102 |
4 |
6x13 |
8x16 |
35° |
2 |
1 |
5.8 |
4148300906 |
|
102 |
4 |
3x13, 2x13 |
6x14 |
35° |
3 |
1 |
5.8 |
4148300907 |
|
102 |
4 |
4x13, 1x13 |
8x14 |
35° |
4 |
- |
5.8 |
4148300908 |
|
102 |
4 |
4x13, 2x13 |
8x13 |
35° |
4 |
1 |
5.8 |
4148300909 |
|
115 |
4 1/2 |
6x14 |
8x16 |
35° |
2 |
- |
6.8 |
4148300910 |
|
115 |
4 1/2 |
4x13, 2x13 |
8x14 |
35° |
4 |
- |
6.8 |
4148300911 |
|
115 |
4 1/2 |
4x13, 3x13 |
8x14 |
35° |
4 |
- |
6.8 |
4148300912 |
|
115 |
4 1/2 |
4x14, 2x14 |
8x16 |
35° |
4 |
- |
6.8 |
4148300913 |
