Name: Green / Blue Retrac Button Bit For Medium Hard To Hard Rock Mining Parts T-WIZ60-115
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T-WIZ60-115
Price: 150.00 USD
Availability: InStock

Home Products Button Drill Bit

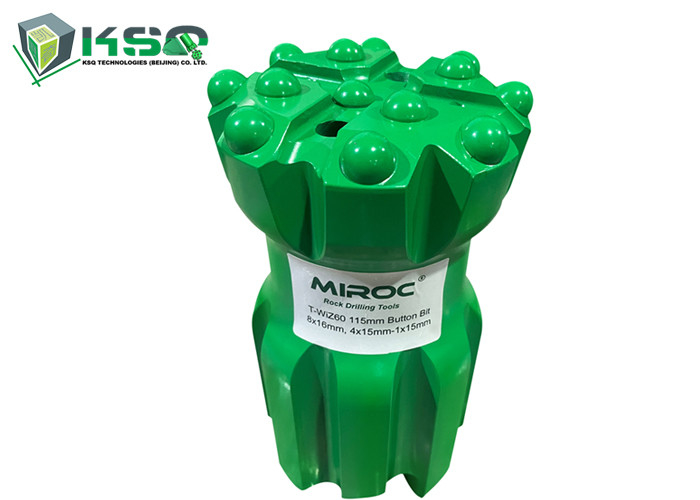

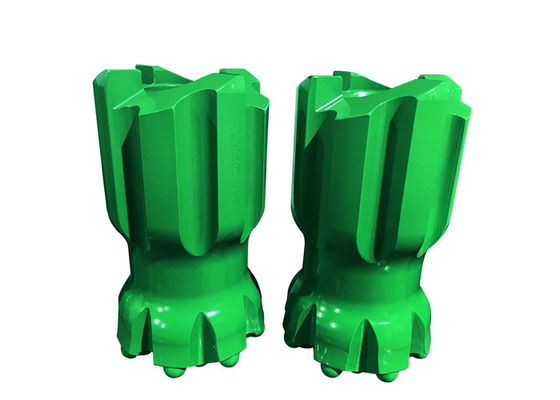

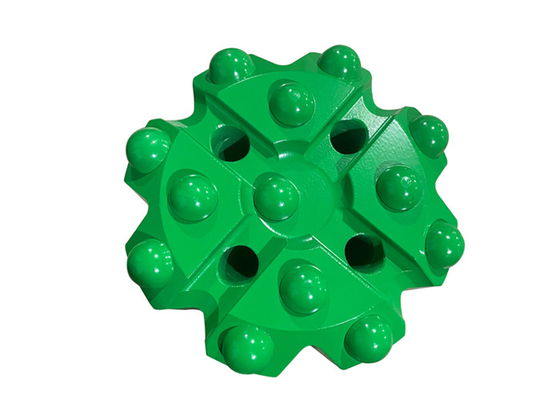

Green / Blue Retrac Button Bit For Medium Hard To Hard Rock Mining Parts T-WIZ60-115

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	ISO
Model Number:	T-WIZ60-115

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	wooden box
Delivery Time:	15-20days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20000pcs per month

Contact Now

Detailed Product Description

Features:	Long And Short Skirt	Material:	High Quality Alloy Steel
Diameter:	60-102mm	Use:	Open Pit And Underground Mining
Skirt:	Normal Skirt/ Retract Sirt	Angle:	35°
Buttons:	Customized(spherical;ballistic;conical)	Application:	Mining
Face Sharp:	Drop Center/Concave/Convex/Flat Face	Processing:	Casting / Forging
Processing Type:	Forging	Rock Class:	Soft, Medium And Hard
Highlight:	Green Rock Mining Parts Button Bit , Hard Rock Mining Parts Button Bit , Blue Retrac Button Bit

Green / Blue Retrac Button Bit For Medium Hard To Hard Rock Mining Parts T-WIZ60-115 0

Competitive advantages and specifications:

* This type of bit is well known for its wear resistance on medium-hard to hard rock formations
* Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
* Widely used drifting and tunneling
* Bit face design is ideal for medium-hard to hard rock formations

• Color: Green,Blue or Based on Customer requirements

Tungsten Carbide:	Ballistic, Spherical, or Conical
Color:	Green or Based on Customer requirements
Material:	Tungsten carbide and high strength alloy steel
Processing:	CNC milling and proprietary heat treatment process
Rock Condition:	Bit face design is ideal for medium-hard to hard abrasive rock
Application:	Widely used in bench and long hole drilling

Diameter		No.of buttons	Buttons x button diameter (mm)		Gauge buttons angle°	Flushing hole		Weight аpprox kg
mm	inch	No.of buttons	Gauge	Centre	Gauge buttons angle°	Side	Centre	Weight аpprox kg
BUTTON BITS-Spherical buttons
95	3 3/4	13	8x14.5	4x12,7 1x12.7	35°	-	4	6,0
102	4	13	8x14.5	4x12.7, 1x12.7	35°	-	4	6,6
102	4	13	8x14,5	4x12,7, 1x12.7	35°	-	4	6,6
115	4 1/2	14	8x15,8	4x14,5, 2x14.5	35°	-	4	8,9
115	4 1/2	14	8x15,8	4x14,5, 2x14,5	35°	-	4	9,4
127	5	14	8x15.8	4x15,8, 2x14.5	35°	-	4	11,3
127	5	14	8x15,8	4x15,8, 2x14.5	35°	-	4	11,3
140	5 1/2	16	8x19.1	4x15,8, 4x15,8	35°	-	4	15,0
140	5 1/2	16	8x19.1	4x15,8, 4x15,8	35°	-	4	15,0
152	6	16	8x19,1	4x15,8, 4x15.8	35°	-	4	13,1
152	6	16	8x19.1	4x15,8, 4x15,8	35°	-	4	18,1
BUTTON BITS - Ballistic buttons
92	3 5/8	13	8x14.5	4x12,7 1x12.7	35°	-	4	4,7
92	3 5/8	13	8x14,5	4x12,7, 1x12.7	35°	-	4	4,5
95	3 3/4	13	8x14.5	4x12,7, 1x12,7	35°	-	4	5,9
102	4	13	8x14.5	4x12.7. 1x12,7	35°	-	4	6,6
115	4 1/2	14	8x15.8	4x14,5,2x14.5	35°	-	4	9,5
127	5	14	8x15.8	4x15,8.2x14.5	35°	-	4	11,3
140	5 1/2	16	8x19.1	4x15,8,4x15.8	35°	-	4	15,0

Green / Blue Retrac Button Bit For Medium Hard To Hard Rock Mining Parts T-WIZ60-115 1
