105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve

  • 105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve
  • 105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve
  • 105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve
105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve
Product Details:
Place of Origin: China
Brand Name: MIROC DTH Button Bit
Model Number: DTH Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece DTH Button Bit
Price: Negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: DTH Button Bit Hammer Type: COP35 / DHD3.5
Diameter: 105mm Color: Green

 105mm DTH Button Bit for COP35 / DHD3.5 DTH Hammer



DTH Button Bit Description:



Name: DTH Button Bit

Diameter: 105mm

Face design: flat face,

Carbide Shape: spherical

Buttons number and diameter: gauge 6x14mm, front 6x12mm,

Flushing holes: 2 front flushing holes

for DHD3.5 hammer,

Weight: 5kg/each

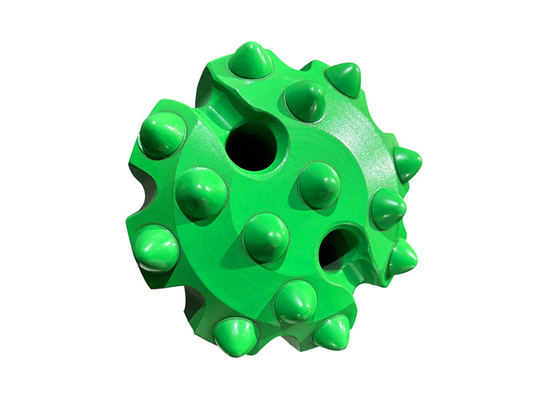

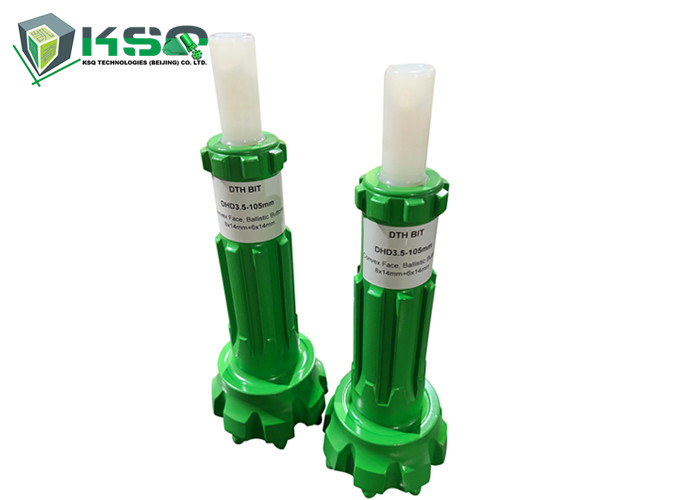

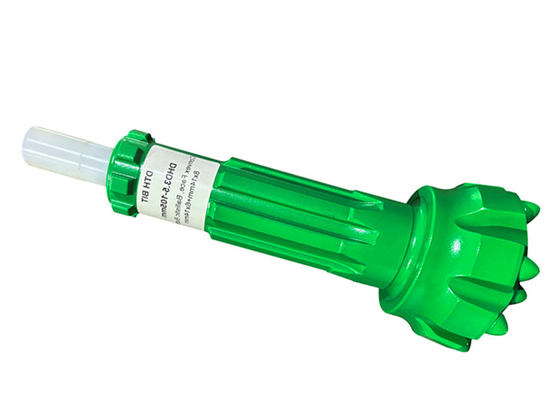

DTH Button Bit Photo:

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 0



105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 1

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 2

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 3



Bit Face Shape Selection:



Center Drop Bit:

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

Maximum hole deviation control.



Concave Face

The all-around application bit face specifically for medium hard and homogeneous rock formations.

Good hole deviation control and good flushing capacity.



Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash and may reduce the load and wear on gauge buttons, but poor hole deviation control.



Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.



Flat Face Bit

This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.





Competitive Advantage

• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



Applications

• Underground mining

• Down the hole rock drilling



More information for 3'' High Air Pressure DTH Bits



DTH Button Bits for COP32, COP34, IR3.5, DHD3.5, BR3, QL30 Hammer.



3'' High Air Pressure DTH Button Bit Specification

3'' High Air Pressure DTH Bits
DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
mm inch Gauge Front kg
COP32 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 8x12 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
BR3 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 6x14 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
IR3.5/COP34 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 6x14 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.3
QL30 85 3 1/3 6x13 4x12 2 4.2
90 3 5/9 6x14 4x12 2 4.5
95 3 3/4 6x14 5x12 2 4.7
100 3 8/9 8x13 6x12 2 5.0
105 4 1/8 8x13 6x12 2 5.5



KSQ Related DTH Button Bits

Product DTH Button Bits
Low Air Pressure CIR80, CIR90
3’’ DHD3.5, M30,
4’’ DHD340, SD4,QL40, M40
5’’ DHD350, SD5,QL50, M50
6’’ DHD360, SD6,QL60, M60
8’’ DHD380, SD8,QL80, M80
Color Green, Gold, Black or based on customer requirements.
MOQ: No MOQ required for testing and trial order



Keywords

DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit



DTH Button Bit Photos:

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 4

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 5





Rock Drilling Tools Brand MIROC®

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 6

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.



MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



MIROC® Rock Drilling Tools include:

  • Integral Rods
  • Plug Hole Rods
  • Tapered Drilling Tools
  • Extension Drilling Tools
  • Drifting and Tunneling Tools
  • Reaming Tools
  • Shank Rods
  • Shank Adapters (Striking Bars)
  • Down-the-hole (DTH) Bits
  • Down-the-hole (DTH) Hammer
  • PDC Bit
  • Tricone Bits

Company Information

105mm DTH Drill Bits For COP35 / DHD3.5 DTH Hammer Green Color with Foot Valve 7
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
