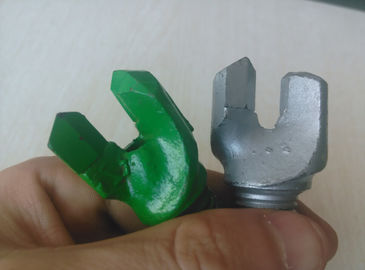

Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips

Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips

  • Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
  • Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
  • Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
  • Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips
Product Details:
Place of Origin: ShanDong China(Mainland)
Brand Name: MIROC
Certification: GB / API
Model Number: Mining bit
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiation
Packaging Details: Carton / Wooden Box or Based on Customers
Delivery Time: 1-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 pieces per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide, 45CrNiMoV Color: Gray Or Based On Customers
Processing: Casting Use: Rock Drill/tunneling/underground Construction/quarry, Rock Drill/tunneling/underground Construction/quarry
Machine Type: Drilling Tools Model Number: MGZT27
High Light:

industrial drill bits

,

hardened steel drill bits

Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips





Specifications:

28mm,32mm,42mm,43mm coal mining tool

We can manufacture all kinds of bits and shells according to customer's special requirement.



Advantage:

1.coal mining tool,coal mine drill bit
2.low price and supreme quality
3.manufacturer
4.Certified by ISO9001



Product Description:
Applications:

 Apply to the anchor-network support hole drilling in coal mine, hydraulic project. Etc.
Characteristics:
1. High wear resistance and impact-resistance toughness.
2. To repeat repair & greaning are not necessary, long drill life.
3. High efficiency could be promoted sharply in penetration of high-medium hard rock formation.
4. Labour intensity could be reduced.
5. Rock formation to be suitable t: F=4-12






Mining Drilling Tools

          Main Standard(mm)

D

H

L

M

 Thread joint

27

44

17

  M14×1.5

27

54

17

  M12×1.75

28

54

20

  M12×1.75

29

52

18

  M14×1.5

30

50

18

  M14×1.5

32

52

22

  M14×1.5

32

56

22

  M12×1.75



Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips 0Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips 1Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips 2





Threaded Button Bit





T38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.7
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
R38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×11 6×12 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 2 - 2.6
4 89 4×13, 1×13 8×13 4 - 3.3
R32 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 41 2×8 5×9 1 1 0.7
2 43 2×9 5×10 1 1 0.7
3 45 2×9 5×11 1 1 0.8
4 48 2×9 5×11 1 1 0.9
5 51 2×10 5×11 1 1 1
6 57 3×9 6×11 3 - 1.3
7 64 3×11 6×12 3 - 1.6
8 70 4×11 8×11 2 - 2.6
9 76 4×11 8×11 2 - 2.8
R28 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 37 2×7 5×9 1 1 0.5
2 38 2×7 5×9 1 1 0.6
3 41 2×8 5×9 1 1 0.7
4 43 2×9 5×9 1 2 0.8
5 45 2×9 5×10 1 2 0.9
6 48 2×9 5×11 1 2 1











Company Profile:



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.



Coal Mining PDC Drill Bit Toughness with Tungsten Carbide Tips 3
