High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining

High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining

  • High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
  • High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
  • High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
  • High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
  • High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining
Product Details:
Place of Origin: ShanDong China(Mainland)
Brand Name: MIROC
Certification: ISO
Model Number: Drilling tools
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiation
Packaging Details: Carton / Wooden Box or Based on Customers
Delivery Time: 1-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 pieces per month
Contact Now
Detailed Product Description
Material: 45CrMo Color: Golgen Or Based On Customers
Processing: Casting / Forging Use: Hard Rock
Machine Type: Drilling Tools Model Number: MGZT27
High Light:

industrial drill bits

,

hardened steel drill bits

High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining







Introduction of PDC:



Polycrystalline Diamond Compact(PDC), is manufactured with a diamond layer attached to a

carbide substrate. Combining the properties of both super hardness and abrasion resistance

of diamond with outstanding strength and toughness of tungsten carbide, PDC has been

widely used in mechanical industry,oil well drilling,geological prospecting drilling and coal mining.

It possess of high wear resistance like diamond, at the same time the impact resistance like hard

alloy and that’s made it the best material as a drill bit cutter. Reinforced PDC has higher dense

diamond powder, claw hard alloy substrate made the two layers solid as whole one. So,

there-inforced PDC of supper wear resistance, longer service life and high efficiency.



Description of coal mine rock drill bit:



PDC anchor shank bit is the most basic part of roadway support in coal mines. It can bound the

surrounding rock of roadway together, and make the surrounding rock to support itself. Roofbolt

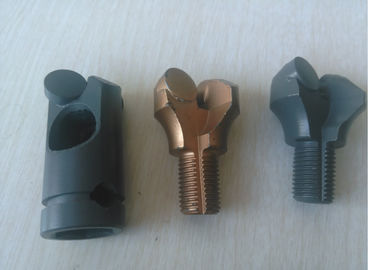

drill bit is a kind of drilling tool for fixing anchor bolt of coal mine. The two wings of our PDC

roofbolt drill bit adopt PDC (Polycrystalline Diamond Compact) as the cutting tooth, the application

of PDC has greatly improved the drilling efficiency of roofbolt drill bit, and is taking the place of tungsten

carbide roofbolt drill bit gradually.



Features of coal mine rock drill bit:



1. The cutting tools adopts new type superhard material;shelf life of drill bit is high.

2. Drilling efficiency of medium hard and harder stratum can be greatly improved.

3. Cutting edge is wearable, no need of polishing, easy to operate.



Application of coal mine rock drill bit:



Anchor-shank drill bit with PDC cutter is mainly applied to the anchor network support hole drilling in

 underground coal mine, transportation,water conservancy and hydrpower,etc.








Mining Drilling Tools

          Main Standard(mm)

D

H

L

M

 Thread joint

27

44

17

  M14×1.5

27

54

17

  M12×1.75

28

54

20

  M12×1.75

29

52

18

  M14×1.5

30

50

18

  M14×1.5

32

52

22

  M14×1.5

32

56

22

  M12×1.75



High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining 0High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining 1High Bending Strength Button Drill Bit Two-wing PDC Anchor Shank For Coal / Mining 2





Threaded Button Bit





T38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.7
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
R38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×11 6×12 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 2 - 2.6
4 89 4×13, 1×13 8×13 4 - 3.3
R32 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 41 2×8 5×9 1 1 0.7
2 43 2×9 5×10 1 1 0.7
3 45 2×9 5×11 1 1 0.8
4 48 2×9 5×11 1 1 0.9
5 51 2×10 5×11 1 1 1
6 57 3×9 6×11 3 - 1.3
7 64 3×11 6×12 3 - 1.6
8 70 4×11 8×11 2 - 2.6
9 76 4×11 8×11 2 - 2.8
R28 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 37 2×7 5×9 1 1 0.5
2 38 2×7 5×9 1 1 0.6
3 41 2×8 5×9 1 1 0.7
4 43 2×9 5×9 1 2 0.8
5 45 2×9 5×10 1 2 0.9
6 48 2×9 5×11 1 2 1





1. Methods of Payment



T/T (Telegraphic Transfer) or Western Union or L/C at sight



2. Handling time for an order



Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.



3. Shipping way



Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.



4. Quality Control



We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.



5. After Services



1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
