| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | API / GB |
| Model Number: | DTH3.5 / M30 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 1-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | Drill Bit,dth Hammer | Material: | Tungsten Carbide And High Strength Alloy Steel |
|---|---|---|---|
| Processing: | Forging | Series: | MISSION , QL , SD , NUMA |
| Color: | Green , Black , Golden Etc | Bit Shank: | QL DTH Hammer And Bit |
| High Light: | carbide tipped drill bits,dth button bits |
||

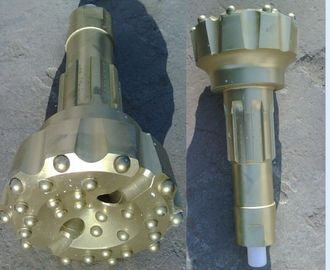

110mm / 203mm Water Well Drilling Bits for Borehole Drilling Hammer
Specification
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
|
Product Code and Brief Description |
Flushing Holes |
Diameter (mm) |
Weight (kg) |
Gauge Buttons ( No.x mm) |
Front Buttons ( No. x mm) |
DTH Hammer |
|
DTH65PQ |
1 |
68 - 72 |
1.5 |
4 x12 |
3 x 12 |
DTH65 |
|
DTH75PQ |
3 |
75 - 77 |
2.4 |
5 x 12 |
3 x 12 |
DTH70 |
|
DTH76PQ |
2 |
76 - 78 |
2.5 |
5 x 12 |
3 x 12 |
DTH76 |
|
DTH76-78 |
2 |
78 - 82 |
2.6 |
5 x 12 |
3 x 12 |
DTH76 |
|
DTH80PQ |
3 |
82 - 84 |
3 |
5 x 12 |
6 x 12 |
DTH80, DTH80X |
|
DTH90A |
3 |
90 - 95 |
3.6 |
6 x 14 |
4 x 12 |
DTH80, DTH80X |
|
DTH80XD-90 |
3 |
90 - 95 |
3.4 |
6 x 12 |
4 x 12 |
DTH80XD |
|
DTH80-II-80 |
3 |
80 - 82 |
3 |
5 x 12 |
4 x 12 |
DTH80-II |
|
DTH90B |
3 |
90 - 95 |
3.8 |
6 x 14 |
4 x 12 |
DTH90, DTH90-I |
|
DTH90T1 |
2 |
90 - 95 |
3.6 |
6 x 14 |
1x12,3x12 (Spherical) |
DTH90, DTH90-I |
|
DTH90T2 |
2 |
90 - 95 |
3.8 |
6 x 14 (Spherical) |
4 x 12 (Spherical) |
DTH90, DTH90-I |
|
DTH90T3J |
3 |
90 - 95 |
3.6 |
6 x 14 (Ballistic) |
4 x 12 (Ballistic) |
DTH90, DTH90-I |
